Looking for a high-end workstation that delivers groundbreaking performance and exceptional
processing power to space-constrained environments? Then look no further. Developed in close

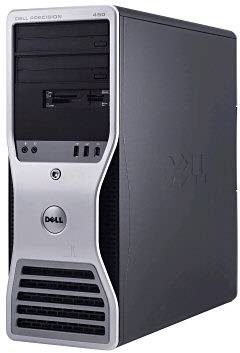

collaboration with hardware and software partners, the Dell Precision 490 workstation combines
a flexible, compact chassis and intelligent power management to deliver an ideal solution for
financial trading floors, performance clusters, render farms and other crowded, power-sensitive
environments. Optimized for performance, reliability and scalability in environments where space
is at a premium, the Dell Precision 490 lets you power through complex tasks and complete your
projects faster than the previous generation.

• New 64-bit quad-core Intel Xeon processors can deliver big performance gains
over the current Intel dual-core processors when running multiple singlethreaded
applications simultaneously (multi-tasking) and for individual
applications which can take advantage of up to eight cores (multi-threaded)1.
• Up to 32GB2 DDR2 fully buffered DIMM ECC memory, plus up to 5x more memory
bandwidth over dual-channel memory with quad channel3 memory architecture4,
delivers no-compromise compute performance in a compact, rack ready form
factor
• Latest SAS (Serial attached SCSI) hard disk storage delivers up to 50% higher
performance than SATA 10K drives5
• A flexible dual-orientation chassis, with added slots for expandability

Up to two Dual-Core Intel Xeon 64-bit processors with up to 1066MHz front side bus and 2MB L2 cache per core, with XD, HT, VT and EIST; All Intel
Xeon processors support 64-bit computing with Intel EM64T
Dell recommends Microsoft Windows XP Professional for Business
Genuine Windows XP Professional; Genuine Windows XP Professional x64 Edition;
Red Hat Enterprise Linux WS v.4 (IA32); Red Hat Enterprise Linux WS v.4 (Intel EM64T)
Intel 5000X chipset
Up to 32GB1 quad-channel2 DDR2 Fully Buffered DIMM (FBD) 533MHz ECC memory; Eight DIMM slots
4MB flash memory for system BIOS; SMBIOS 2.3.1 support
Support for PCI Express x16 graphics cards up to 150 watts and with up to 512MB graphics memory including: nVIDIA Quadro FX 4500; nVIDIA
Quadro FX 3500; ATI FireGL 7200; nVIDIA Quadro FX550; ATI FireGL V3400; nVIDIA Quadro NVS 285; All graphics cards support dual monitor
configurations
SATA 3.0Gb/s 7200RPM with 8MB DataBurst Cache up to 250GB3; SATA 3.0Gb/s 10K RPM with 16MB DataBurst Cache up to 500 GB3; SATA
10K RPM with 8MB DataBurst Cache up to 160GB3; SAS 10K RPM up to 300GB3; SAS 15K RPM up to 146GB3; Chassis supports up to three
internal drives (1.5TB3 storage maximum)
Integrated SATA 3.0Gb/s controller with support for RAID 0, 1, and 5; SAS RAID 0, 1 with optional SAS 5i/r PCI-E card; SAS RAID 0, 1, 5, 10 with
optional PERC 5/i PCI-e card
Integrated Broadcom 5752 Gigabit4 Ethernet controller
Integrated High Definition Audio (Rev 1.0 Specification) with Sigmatel STAC9200 High Definition Audio CODEC and Intel ESB2’s AC97/ High
Definition digital controller
Eight USB 2.0: two on front panel, five on back panel, one internal on motherboard; Two serial; One parallel; Two PS/2; One RJ-45; Stereo line-in
and headphone line-out on back panel; Microphone and headphone connector on front panel
IEEE 1394a connector available on front panel with add-in card

EMAIL US FOR A CUSTOM SYSTEM QUOTE.WE CAN BUILD ANY CONFIGURATION YOU REQUIRE.

DELL PRECISION 490 INTEL 2X DUAL XEON DUAL CORE 3.2GHZ CPU 4MB 1066MHZ FSB, 8GB DDR2 PC2-5300 667MHZ ECC MEMORY, ON-BOARD SATA RAID CONTROLLER, 1TB (2x-500GB) 7.2K RPM SATA  HARD DRIVES, DVD/RW BURNER  DRIVE, USB, NVIDIA QUADRO FX3400 GRAPHICS, SINGLE 1x-10/100/1000 NETWORK CARDS, SINGLE 1x- POWER SUPPLY, MICROSOFT WINDOWS XP PRO PRE-INSTALLED.

DELL FACTORY RECERTIFIED UNIT- FACTORY REBUILT TO LIKE NEW CONDITION, FULLY PROFESSIONAL TESTED BEFORE SHIPPED.

3 YEAR PARTS REPLCEMENT WARRANTY - FREE

• 3 year limited parts replacement warranty
• DELL FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION
