FEATURES PowerEdge 1900 Server:

Form factor
Processors
Front side bus
Cache
Chipset
Memory
I/O slots
Integrated controllers
RAID controller
Drive bays
Maximum internal storage
Hard drives1
Internal storage
External storage
Tape backup options
Network interface card
Modem
Power supply
Availability
Video
Remote management
Systems management
Rack support
Operating systems
Tower only
Up to two Dual-Core Intel Xeon 5000 processors with up to 3.00GHz clock frequency;
up to two Dual-Core Intel Xeon 5100 processors with up to 3.00GHz clock frequency
5000 Sequence: 667MHz or 1066MHz
5100 Sequence: 1066MHz or 1333MHz
5000 Sequence: 2x2MB L2 cache per processor
5100 Sequence: 4MB L2 cache per processor
Intel 5000P
256MB/512MB/1GB/2GB Fully Buffered DIMMs (FBD) in matched pairs;
533MHz or 667MHz; 8 FBD DIMM sockets for support up to 16GB
Six total: Two 64bit/133MHz PCI-X slots on a single PCI bus; one x8 PCI Express slot;
three x4 (x8 connector) PCI Express slots
PERC 5/i (optional): SAS 3.0Gb/s RAID controller with Intel IOP333 processor and 256MB cache;
SAS 5/iR (optional): 2 port SAS RAID controller (for RAID 0, 1); 2-port embedded SATA
Optional PERC 4e/DC (dual-channel PCI Express RAID controller);
Optional PERC 5/E adapter for external RAID storage
Standard internal hard drive bays support up to six 3.5" SAS or SATA cabled hard drives;
Peripheral bay support for two half-height devices (tape drive plus one optional CD-ROM,
optional DVD-ROM or Combo CD-RW/DVD-ROM); optional 3.5" floppy drive bay
Up to 3.0TB
3.5" SAS (10K rpm) : 73GB, 146GB or 300GB cabled hard drives;
3.5" SATA (7.2K rpm) : 80GB, 160GB, 250GB or 500GB cabled hard drives
6 x 3.5" cabled SAS drives (10K) or 6 x 7.2K SATA drives
Dell PowerVault 22xS SCSI, PowerVault MD1000, Dell/EMC products
Internal: PowerVault 100T and 110T
External: PowerVault 114T, 122T, 124T, 132T, 136T, 160T and ML6000
Single embedded Broadcom NetXtreme II 5708 Gigabit2 Ethernet NIC; TOE (TCPIP
Offload Engine) supported on Microsoft Windows Server 2003, SP1 or higher with
Scalable Networking Pack. Optional add-in NICs: Intel PRO/1000 PT Dual Port Server
Adapter, Gigabit, Copper, PCI-E x4; Intel PRO/1000 PT Single Port Server Adapter,
Gigabit, Copper, PCI-E x1; Intel PRO/1000 PF Single Port Server Adapter, Gigabit, Optical,
PCI-E x4; Broadcom NetXtreme 5721 Single Port Gigabit Ethernet NIC, Copper, PCI-E
x1; Broadcom NetXtreme II 5708 Single Port Gigabit Ethernet NIC w/TOE,
Copper, PCI-E x4
Optional Conexant V.92 internal modem
800W, non-redundant power
ECC memory; Spare Row; Single Device Data Correction (SDDC); PERC 5/i integrated
daughtercard w/ battery-backed cache; high availability failover cluster support; DRAC5;
tool-less chassis; cluster support
Embedded ATI ES1000 with 16MB memory
Standard Baseboard Management Controller with IMPI 2.0 support; optional DRAC5
for advanced capabilities
Dell OpenManage
Tower chassis only; no rack support
Microsoft Windows Server 2003 R2, Standard, Enterprise Edition, x64, Standard and
Enterprise Edition; Microsoft Windows Server 2003 Small Business Standard, Premium
Edition; Microsoft Windows Storage Server 2003 R2, Standard, Enterprise Edition;
Red Hat Linux Enterprise v4, ES EM64T; SUSE Linux Enterprise Server 9 EM64T

EMAIL US FOR A CUSTOM SYSTEM QUOTE.WE CAN BUILD ANY CONFIGURATION YOU REQUIRE

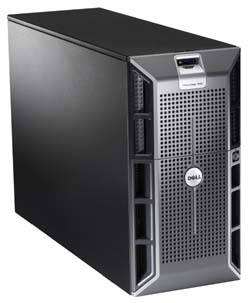

DELL POWEREDGE 1900 2x-DUAL XEON 3.73GHZ CPU'S 1066MHZ FSB 4MB CACHE, 4GB DDR2 PC5300 ECC MEMORY, PERC 5I ON-BOARD RAID CONTROLLER WITH 256MB RAID MEMORY, 2TB (4x-250GB) 7.2K RPM SATA HARD DRIVES, DVD ROM DRIVE, FRONT BEZEL, DUAL 2x-10/100/1000 NETWORK CARDS, USB, SINGLE 1x- 800 WATT POWER SUPPLIES.

DELL FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION,FULLY PROFESSIONAL TESTED AND PACKAGED BEFORE SHIPPED.

3 YEARS PARTS REPLCEMENT WARRANTY - FREE

Supplier Warranty:
