Performance
Designed to give you the latest high performance technologies, management tools and storage features, the scalable,
quad-socket Dell PowerEdge 6850 server is a part of Dell’s comprehensive solution for databases and business-critical
applications such as Microsoft SQL Server, Oracle, PeopleSoft and SAP. Powered by the latest dual-core 64-bit
Intel Xeon processors 7100 sequence, a 800MHz Front Side Bus, up to 64GB DDR-2 Memory, SAS hard drives and PCI
Express, this server provides exceptional performance in a 4U rack dense form factor.

Availability
The PowerEdge 6850 server features advanced memory technology for enterprise-class availability. Memory features
such as Memory RAID, mirroring and hot-plug DDR-2 SDRAM with Error Correcting Code (ECC) memory plus SDDC keep
systems performing without interruption by withstanding errors that could normally bring a system without these high
availability features down. In addition, the PowerEdge 6850 provides hot-plug, redundant power supplies, memory,
PCI Express slots, hard drives and cooling fans so that you can replace components without having to make the server
unavailable to its users.

Expandability
The Dell PowerEdge 6850 server is designed to meet the growing needs of demanding database and enterprise
application environments with features such as an optional integrated HBA for factory installed and tested Fibre Channel
SAN connectivity. It features four hot-plug PCI Express slots and three PCI-X slots that deliver further expandability
for redundant connections to the network and storage. In addition, this server includes redundant integrated NICs so that
you can get the most out of your PCI slots. Five 3.5" SAS or SCSI drives or eight 2.5" SAS drives and the PERC 5/i RAID
option for SAS drives, PERC 4e/DC PCI Express capable option for SCSI drives, or PERC 4e/Di onboard option enhance
availability and performance. Additionally, PERC 5/E provides connectivity to the PowerVault MD1000, an external
SAS storage enclosure that can help satisfy the performance requirements of both mainstream and demanding
single-server applications.

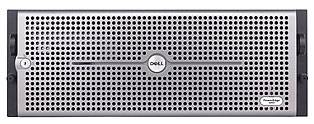

FEATURES Dell PowerEdge 6850 Server
Form factor
Processors(s)
Front side bus
Cache
Chipset
Memory
I/O slots
Drive controller
RAID controller
Drive bays
Maximum internal storage
Hard drives3
Internal storage performance
External storage
Tape backup options
Network interface card
Power supply
Availability
Video
Remote management
Systems management
Rack support
Operating systems
4U rack-mount
Up to four dual-core 64-bit Intel Xeon processors 7100 sequence
Dual Independent 800MHz
Up to 16MB L3 cache per processor (dual-core)
Intel 8501 (800MHz)
1GB/64GB DDR-2 400 ECC SDRAM
Seven total: four hot-plug PCI Express slots and three PCI-X slots
Embedded dual channel Ultra320 SCSI
PERC 5/i, PERC 5/E, 4/DC, PERC 4e/DC and PERC 4e/Di
Five 3.5" SCSI or SAS hot-plug drives or eight 2.5" SAS hot plug drives;
floppy drive and CD or CD-RW/DVD2
Up to 1.5TB3
2.5" SAS (10k rpm): 36GB or 73GB
3.5" SAS (10k rpm): 73GB, 146GB, 300GB
3.5" SAS (15k rpm): 36GB, 73GB, 146GB
3.5" SCSI (10k rpm): 73GB, 146GB and 300GB
3.5" SCSI (15k rpm): 36GB, 73GB and 146GB
10K/15K RPM SCSI drives or 10K SAS drives
SAS, SCSI and fibre channel storage systems with optional integrated HBA
External: PowerVault 124T, 132T, ML6000 series
Dual embedded Broadcom Gigabit4 NICs
1470W, hot plug 1+1 redundant power, 200-240V only
Hot-plug memory, ECC memory with SDDC, Memory RAID and Memory Mirroring;
hot-plug PCI Express slots; hot-plug SCSI or SAS hard drives; hot-plug redundant power;
hot-plug redundant cooling; tool-less chassis; high availability fibre channel and SCSI
cluster support; optional ROMB with battery-backed cache
Embedded ATI-Radeon 7000 controller with 16MB SDRAM
Baseboard Management Controller with IPMI 1.5 compliance,
accessible via network or serial port; optional DRAC 4/p
Dell OpenManage
4-post for Dell rack or supported 3rd party racks
Microsoft Windows Server 2003, Standard x64 Edition;
Microsoft Windows Server 2003, Enterprise x64 Edition;
Microsoft Windows Server 2003, Standard Edition;
Microsoft Windows Server 2003, Enterprise Edition;
Red Hat Enterprise Linux 3 and 4;
SUSE Linux Enterprise Server 9 EM64T SP2;

EMAIL US FOR A CUSTOM SYSTEM QUOTE.WE CAN BUILD ANY CONFIGURATION YOU REQUIRE,

DELL POWEREDGE 6850 4x-QUAD XEON 3.66GHZ CPU'S 667MHZ FSB 1MB CACHE, 16GB DDR2 PC3200 ECC MEMORY, FLOPPY DRIVE, PERC 4/DI ON-BOARD RAID CONTROLLER WITH 256MB RAID MEMORY, 730GB (5x-146GB) 10K RPM U320 SCSI HARD DRIVES, CD ROM DRIVE, FRONT BEZEL, DUAL 2x-10/100/1000 NETWORK CARDS, DUAL 2x- 1470 WATT POWER SUPPLIES.

3 YEARS PARTS REPLCEMENT WARRANTY - FREE

Supplier Warranty:

• 3 years limited parts replacement warranty
• DELL FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION
