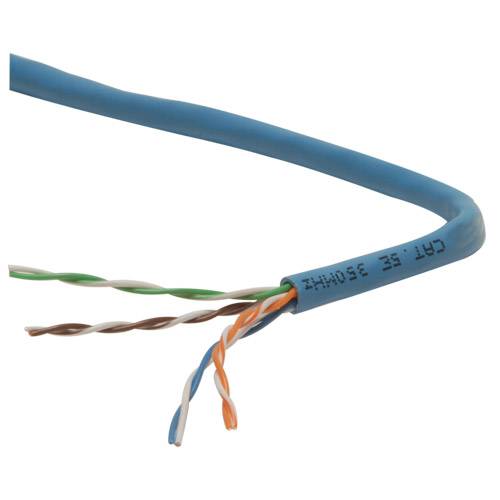

Dayton 105E8U Cat 5e CMR Solid Cond 350 MHz Gray 1000 ft.
Dayton 105E8U Cat 5e CMR Solid Cond 350 MHz Gray 1000 ft.
Category 5e cable has become the standard cable type used in commercial and residential structured wire systems for telephony, computer networking, and surveillance…and more! Dayton Audio's bulk Cat 5e features 350 MHz bandwidth for advanced applications including high-speed Gigabit Ethernet (1000BASE-T) networks and A/V signal transmission using baluns, while meeting or exceeding the standards set forth by EIA/TIA 568B.2 for performance and UL and NEC riser rating requirements for vertical flame testing. Packaging has been designed around the Spool-in-Box payout system. This enables installers to save time (and money) by virtually eliminating performance robbing cable kinks, common with other manufacturers' bulk Cat 5e cable, during installation. Alternatively, the internal spool may be removed to "rack-up" on a traditional cable caddy. Specifications: • Individual conductors: 24 AWG (0.50 mm) • Nominal impedance: 100 ohms (±15 ohms) • DCR: 9 ohms/100 meters • Capacitance: 5000 pF/100 meters • Attenuation  350 MHz: 44.9 dB • Overall cable diameter: 5.10 mm (± 0.10 mm).
  • 350 MHz rating far exceeds the performance of standard 100 MHz Cat 5e
  • Spool-in-Box payout system virtually eliminates cable kinks
  • Sequential foot mark every two feet shows cable remaining in the box glance
  • CMR rated, UL and C-UL listed
  • Verified EIA/TIA 568B.2 compliant

Email Friend

Product Question
List Price: $149.99
Your Price: $99.99


« Previous | Next »

Dayton 105E8U Cat 5e CMR Solid Cond 350 MHz Gray 1000 ft.
Product Reviews

No Reviews For This Product.
