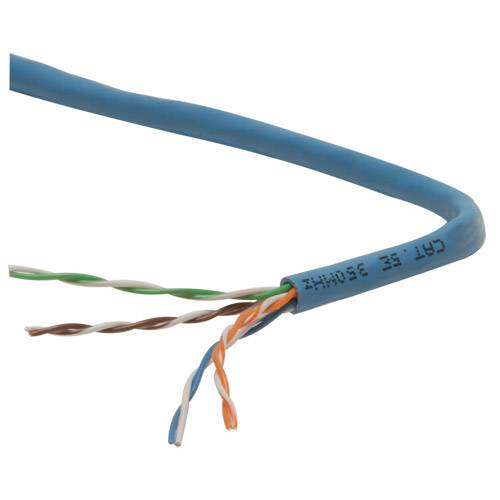

Dayton 205E6U Cat 5e Shielded CMR Solid 350 MHz Blue 1000ft.
Dayton 205E6U Cat 5e Shielded CMR Solid 350 MHz Blue 1000ft.
Shielded category 5e cable is designed to overcome electrically noisy environments, common in industrial environments, to provide a clear signal without distortion for computer, telephone, and surveillance networks. Dayton Audio's shielded bulk Cat 5e features a shield over four individually twisted pair conductors with a 125% overlapped Mylar wrap to be virtually immune from electro-magnetic and radio frequency interference. The shield connects to a single tinned-copper drain wire to route noise to ground. A 350 MHz cable bandwidth allows for advanced applications including high-speed Ethernet networks and A/V signal transmission using baluns (including HDTV quality signals), while meeting or exceeding the standards set forth by EIA/TIA 568B.2 for performance and UL and NEC riser rating requirements for vertical flame testing. Packaging has been designed around the Spool-in-Box payout system. This enables installers to save time (and money) by virtually eliminating performance robbing cable kinks, common with other manufacturers' bulk Cat 5e cable, during installation. Specifications: • Individual conductors: 24 AWG (0.52 mm dia.) solid copper • Drain wire: 0.4 mm dia. tinned-copper • Nominal impedance: 100 ohms (±15 ohms) • DCR: 8.9 ohms/100 meters • Capacitance: 4800 pF/100 meters • Attenuation  350 MHz: 44.9 dB • Overall cable diameter: 6.10 mm (± 0.10 mm)
  • High noise-rejection design
  • Shielded twisted-pair cable construction with a single drain wire
  • 125% overall Mylar wrap for added interference protection
  • 350 MHz bandwidth far exceeds 100 MHz bandwidth of standard Cat 5e
  • Sequential foot markers indicate cable remaining in the box

Email Friend

Product Question
List Price: $199.99
Your Price: $189.99


« Previous | Next »

Dayton 205E6U Cat 5e Shielded CMR Solid 350 MHz Blue 1000ft.
Product Reviews

No Reviews For This Product.
