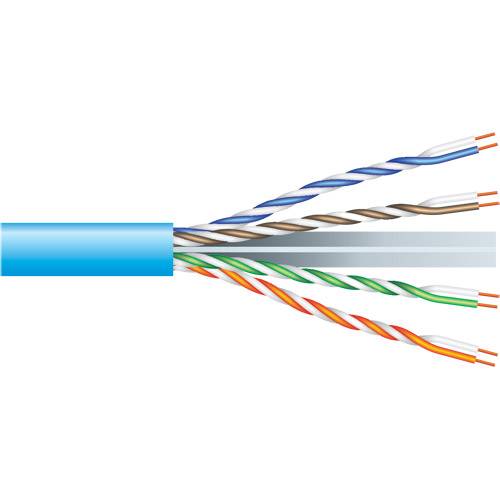

Dayton 1066U Cat 6 CMR Solid Cond 500 MHz Blue 1000 ft.
Dayton 1066U Cat 6 CMR Solid Cond 500 MHz Blue 1000 ft.
Category 6 cable provides a high-speed pathway for gigabit Ethernet performance. Perfectly suited for applications including computer network, telephone, surveillance, video distribution, audio and infrared system control. Dayton Audio Cat 6 cable has been designed, manufactured and verified to meet and exceed published standards for computer network installations. Features include a superior 550 MHz bandwidth compared to standard 250 MHz Cat 6 cable, and a thick central spline that separates the individual pairs decreasing noise and crosstalk. UL and NEC requirements have been met for vertical flame tests making this cable riser rated for in-wall and in-ceiling installations. Packaging has been designed around the Spool-in-Box payout system. This enables installers to save time (and money) by virtually eliminating performance robbing cable kinks, common with other manufacturers' bulk Cat 5e cable, during installation. Alternatively, the internal spool may be removed to "rack-up" on a traditional cable caddy. Specifications: • Individual conductors: 23 AWG (0.57 mm dia.) solid copper • Nominal impedance: 100 ohms (±15 ohms) • DCR: 6.9 ohms/100 meters • Capacitance: 5000 pF/100 meters • Attenuation  550 MHz: 52.8 dB • Overall cable diameter: 6.10 mm (± 0.10 mm).
  • Rated to 550 MHz—exceeding the performance of standard 250 MHz Cat 6
  • Central spline decreases noise and crosstalk
  • Verified EIA/TIA 568B.2 and 10BASE-T, 100BASE-TX, 1000BASE-T, and 10GBASE-T compliant
  • Sequential foot mark every two feet, shows cable remaining at a glance
  • Spool-in-Box payout system virtually eliminates cable kinks

Email Friend

Product Question
Your Price: $149.00
