Electronics Gear- Electronics,Computer Sales and Service: Dayton 3106AD0U RG-6/U Solid Copper 95% Cu Braid 1000 ft., Wire, Cable & Connectors, 101-107

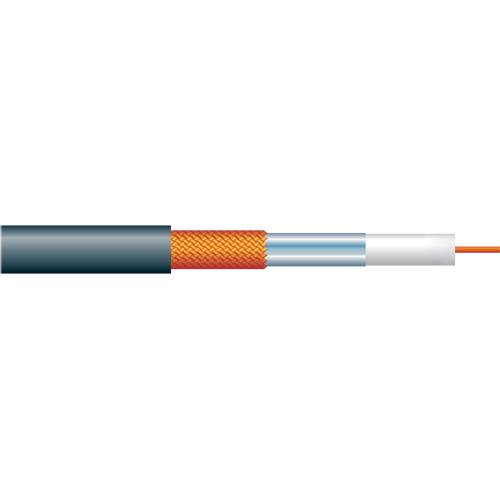

The added capacity of HDTV channels available from digital cable and satellite makes it necessary to reconsider the type of coaxial cable used for installations. Poor quality cable causes a high voltage drop along the cable length. This limits channel bandwidth resulting in a less than predictable performance potentially creating service calls. A solid copper center conductor, within Dayton Audio's RG-6/U cable, is the perfect signal path for high performance signals used with satellite and cable receivers. The bare copper braid provides 95% coverage and is also ideally suited for surveillance cameras that transmit data over the shield. Aluminized Mylar foil is bonded to the dielectric (125% coverage) to provide 100% shield protection from EM and RF interference. UL and C-UL listed; CMR rated for use within walls. Packaging was designed explicitly for installers on the go. The spool-in-box payout system virtually eliminates cable kinks during installation. For installers that prefer the use of a wire rack, the spool can be quickly removed and "racked-up". Specifications: • Center conductor: 1.02 mm dia. solid copper • Dielectric: 4.57 mm dia. foamed PE • Shield: 125% coverage aluminized Mylar foil and 95% coverage 168 x 0.12 mm dia. copper braid • Nominal impedance: 75 ohms • Velocity of propagation: 82% • Capacitance: 53.1 pF/meter • Nominal attenuation: 21.6 dB/100 meters 1 GHz • Overall diameter: 6.86 mm.

Due to size and/or weight an additional

shipping charge of $9.95 applies.
