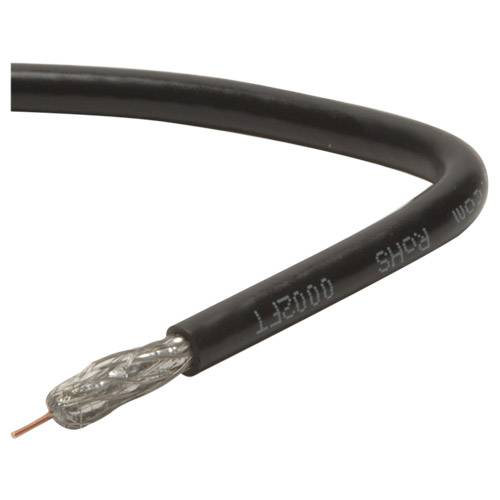

Electronics Gear- Electronics,Computer Sales and Service: Dayton 3159BC0U RG-59/U Copper Clad Al Braid 1000 ft., Wire, Cable & Connectors, 101-123

RG-59 has been a staple of the cable and antenna market for many decades. A copper clad steel 22 AWG center conductor makes this cable ideally suited for installations where a stiffer, stronger cable is desired such as in outdoor antenna installations. The 60% coverage aluminum braid over 125% overlapped aluminized Mylar foil provides a 100% shield against EM and RF interference. UL and C-UL listed; CMR rated for use within walls. Packaging was designed with ease of installation in mind. The spool-in-box payout system virtually eliminates performance robbing cable kinks during installation. For use with traditional cable caddies, the spool can be quickly removed and "racked-up". Specifications: • Center conductor: 0.813 mm dia. copper-clad steel • Dielectric: 3.71 mm dia. foamed PE • Shield: 125% coverage aluminized Mylar foil and 60% coverage 80 x 0.12 mm dia. aluminum braid • Nominal impedance: 75 ohms • Velocity of propagation: 66% • Capacitance: 56 pF/meter • Nominal attenuation: 33 dB/100 meters 1 GHz • Overall diameter: 6.10 mm.

22 AWG copper-clad steel center conductor
60% coverage aluminum braid
125% coverage Mylar foil
UL, C-UL listed and CMR rated
Spool-in-Box payout system with sequential foot markers to indicate cable remaining in the box
