Electronics Gear- Electronics,Computer Sales and Service: Dayton 3206BC0Y Dual RG-6/U Copper Clad Al Braid 500 ft., Wire, Cable & Connectors, 101-137

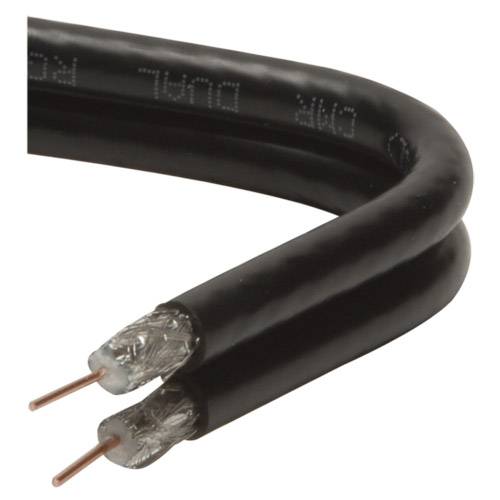

Modern technology makes it easy to forget how important cable quality can be—that is, until the digital cable, internet, or satellite TV goes out. Dayton Audio's dual RG-6/U cable is engineered to strict tolerances for cable and satellite signal transmission that you can count on. Two separate RG-6/U cables are attached together in Siamese configuration for quick installation of popular DVR and multi-LNB satellite service. A copper-clad steel 18 AWG center conductor increases cable strength making this cable ideally suited for outdoor antenna, digital cable, and satellite installations. Alternatively, this cable may also be used for custom length RCA audio cables due to a 60% coverage aluminum braid over 125% overlapped Mylar foil provides a 100% shield against interference. UL, and C-UL listed; CMR rated for in-wall use. Packaging was designed with ease of installation in mind. The spool-in-box payout system virtually eliminates cable kinks during installation. For traditional cable caddies, the spool may be quickly removed and "racked-up". Specifications (each cable): • Center conductor: 1.02 mm dia. copper-clad steel • Dielectric: 4.57 mm dia. foamed PE • Shield: 125% coverage aluminized Mylar foil and 60% coverage 80 x 0.12 mm dia. aluminum braid • Nominal impedance: 75 ohms • Velocity of propagation: 82% • Capacitance: 53.1 pF/meter • Nominal attenuation: 21.6 dB/100 meters 1 GHz • Overall diameter: 6.86 mm.

Dual design-installing two cables in one pull
18 AWG copper-clad steel center conductor
60% coverage aluminum braid
125% coverage Mylar foil
Spool-in-Box payout system with sequential foot markers to indicate cable remaining in the box

Due to size and/or weight an additional

shipping charge of $19.95 applies.
