Channel Vision A-KIT2 Aria 6 Zone A/V Distribution Kit White
Channel Vision A-KIT2 Aria 6 Zone A/V Distribution Kit White

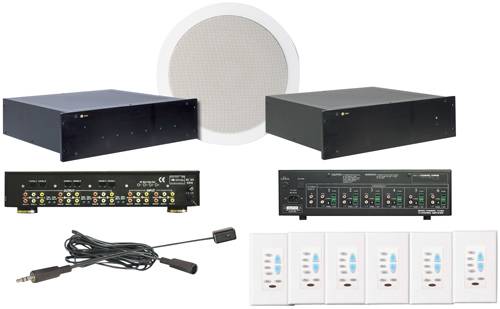

The A-Kit 2 includes everything you need for a distributed audio system. The kit includes an A4601 4 input 6 output matrix A/V controller, an A1260 12 channel amplifier, six A0127 keypads, and 6 pairs of IC602 6-1/2" ceiling speakers. The A4601 A/V controller accepts 4 audio and video inputs and sends them independently to 6 zones. It also includes 4 IR outputs to control source equipment from each zone. The A1260 is a 12 channel whole house amplifier and delivers 60 watts per channel to each zone. The A0127 keypads provide independent source selection and has a built in IR repeater to control the source equipment. Six pairs of IC602 6-1/2" ceiling speakers finish the kit. They have a polypropylene woofer and a 1" pivoting Mylar dome tweeter. The IC602s are able to handle 120 watts and have a frequency response from 45 - 20,000 Hz. Specifications: A4601: *Audio *Bandwidth: 20-20 kHz *Crosstalk: -90 dB *Dynamic Range: 6.0 Vp-p THD: 0.01% *Video *Bandwidth: DC-20 MHz *Crosstalk: -60 dB A1260: *Frequency range: 20-20 kHz *Power output: 60 W/ch  8 ohms (60 W/ch  4 ohms) *Turn on delay: < 500 msec *Turn off delay: ~ 30-100 seconds *THD: < .1% 1 kHz *Power consumption: < 35W (no input) IC602: *Woofer: 6-1/2" polypropylene cone *Tweeter: 1" pivoting Mylar dome *Power handling: 20 watts RMS/120 watts max *Impedance: 8 ohms *Frequency response: 45-20,000 Hz *SPL: 90 dB 1W/1m *Dimensions: 9" dia. x 3-1/2" D *Cutout size: 7-1/2" dia.
  • Whole house audio system in one box
  • 4 input 6 output A/V matrix controller
  • 12 channel 60 watt amplifier
  • Six keypads
  • Six pairs of 6-1/2" ceiling speakers
2 Customer Reviews
Value  5
Performance 5
Features 5
Overall Satisfaction 5


1-2 of 2 Reviews


GREAT FOR MUSIC
Saturday, January 10, 2009
Parts Express Customer from Dothan, Al.

I think this system is much better than advertised, highly impressed.
  Experience with Product
I own it
Technical Knowledge
Professional

Value 5
Performance 5
Features 5
Overall 5


Distributed Audio at it's Best
Tuesday, June 24, 2008
Coalan Gatts from Cincinnati,Ohio

Easy to set up and install! I will use this system again. This product gives control over 4 sources of audio. Sounds great and Looks Great as well. If you want more choices in each room where audio is heard then this is the system to use. NOTE: The only problem I have found with this package is: this system only comes with white keypads, if you need Ivory or Almond color then you have to buy those seperately.
  Experience with Product
I've used it
Technical Knowledge
Professional

Value 5
Performance 5
Features 5
Overall 5

Email Friend

Product Question
List Price: $2,799.99
Your Price: $2,299.00
