Dayton XO3W-375/3K 3-Way Crossover 375/3,000 Hz(Back to product)

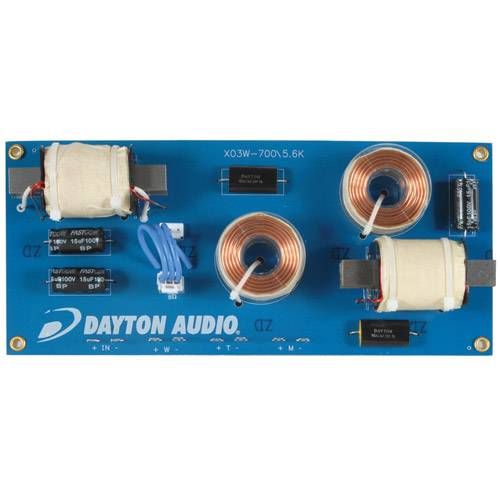

These 3-way, 2nd order (12dB) crossovers were designed with a 3 octave spread between crossover points. Dayton metallized polypropylene capacitors are used in critical midrange and tweeter signal paths. 18 gauge inductors were used to keep DC resistance to a minimum. A unique design feature of the low pass section allows use of 4 or 8 ohm woofers, perfect for building a multi woofer system. The midrange and high pass sections are rated for an 8 ohm load. All components are glued or fastened down to eliminate buzzing and vibrations. The high quality blue PC board uses a back plate for added rigidity and eyelet holes for easy mounting. Available in a variety of crossover points. 300W power handling. Board measures: 11-3/8 W x 4-3/8 H x 2 D.
