The SmartPro family of intelligent, line-interactive UPS systems is specially designed to provide mission-critical network, telecom and server applications with a superior level of power protection and control. These long lasting battery back-ups support up to four servers during blackouts. Automatic voltage regulation constantly monitors incoming voltage and "trims" or "boosts" to supply consistent power without draining batteries. Powerful surge suppression safeguards against damage from spikes and line noise.
Every model includes award-winning PowerAlert Software to acilitate graceful unattended shutdown and unparalleled network management and control, including wireless devices. Peace of mind comes in the form of $75,000 Ultimate Lifetime Insurance to cover connected equipment against surge damage...for life!
SYSTEM OVERVIEW
Line-interactive 2U rack / tower UPS protects equipment from blackouts, brownouts, overvoltages, surges and line noise. Maintains sine wave AC output during blackouts and continuously corrects brownouts and overvoltages from 83 to 147 volts. Supports enhanced monitoring of UPS and line power conditions via built-in USB and DB9 serial ports, included PowerAlert monitoring software and complete cabling. Includes slot for SNMPWEBCARD accessory. Built-in pair of load management banks offer remote reboot of selected loads or load shedding to enhance battery runtime for critical loads. Supports 2U rackmount and upright tower form factors with included hardware.
Voltage compatibility: 120V AC
Frequency compatibility: 60 Hz
OUTPUT
Output volt amp capacity (VA): 1000
Output watt capacity (watts): 700
Output nominal voltage: 120V AC
Output voltage regulation: LINE MODE: Sine wave line voltage 120V (-21% +8%), BATTERY MODE: Sine wave output within 5% of 120VAC
Output frequency regulation: LINE MODE: Passes line frequency of 60Hz +/-10% BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz

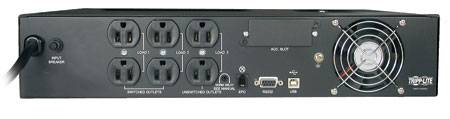

Outlet quantity / type: 6 NEMA 5-15R
Customized load management receptacles: Includes 2 load banks, each with 2 outlets, that support load shedding and remote reboot on demand of locked network devices. Controllable via PowerAlert software to automatically switch off optional loads, like monitors, to increase available runtime for servers and other critical devices.
Overload protection: 15A input breaker
INPUT
Maximum input amps: 6.8A / 770 watts
Input connection type: NEMA 5-15P
Input cord length: 10 ft., 14 gauge
Recommended electrical service: 15A 120V
BATTERY
Full load runtime: 7 minutes (700 watts)
Half load runtime: 17 minutes (350 watts)
DC system voltage: 24 VDC
Typical battery lifespan: 3-6 years, depending on usage
Battery recharge rate: 2-4 hours to 90%
VOLTAGE REGULATION
Voltage regulation description: Line interactive voltage regulation system corrects input voltages between 83 and 147 back to usable 120V nominal levels.
Overvoltage correction: Input voltages between 128 and 147 are reduced by 12%
Brownout correction: Input voltages between 83 and 107 are boosted by 14%
LEDS ALARMS & SWITCHES
Front panel LEDs: 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
Alarms: 3 function audible alarm indicate: power failure conditions—4 short beeps every 10 seconds; overload—continuous short beeps; and low battery—continuous tone
Switches: Includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions
SURGE / NOISE SUPPRESSION
AC surge suppression: 480 joules
AC suppression response time: Instantaneous
EMI / RFI AC noise suppression: Yes
PHYSICAL
Shipping weight (lbs): 41.5
Shipping weight (kg): 18.8
Unit weight (lbs): 35
Unit weight (kg): 15.9
Unit Dimensions (HWD/in): 3.5 x 17.5 x 13.5
Unit Dimensions (HWD/cm): 8.9 x 44.5 x 34.3
Shipping Dimensions (HWD/in): 9 x 24 x 20.25
Shipping Dimensions (HWD/cm): 22.9 x 61 x 51.4
Material of construction: Steel
Form factors supported: Rack (2U)
Cooling method: Built-in cooling fan
Battery Access: Battery access door allows hot swap battery replacement without powering connected equipment off
ENVIRONMENTAL
Operating Temperature: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity: 0 to 95%, non-condensing
COMMUNICATIONS
Network monitoring port: Includes 2 built-in monitoring ports, 1 USB & 1-DB9.
