Electronics Gear- Electronics,Computer Sales and Service: Replacement Woofer for 15" Realistic Mach One 8 Ohm, Speakers, 290-184

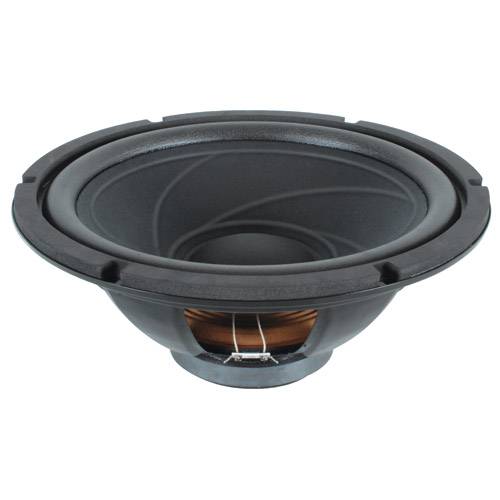

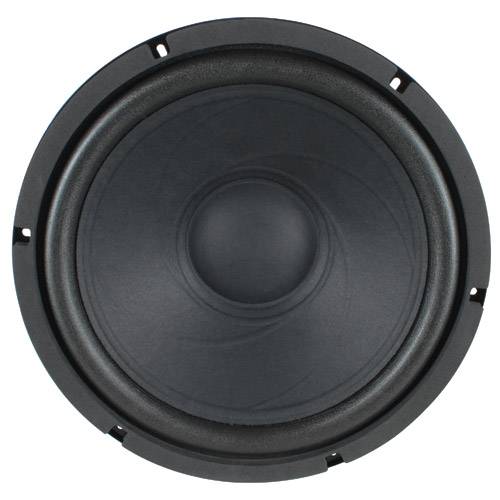

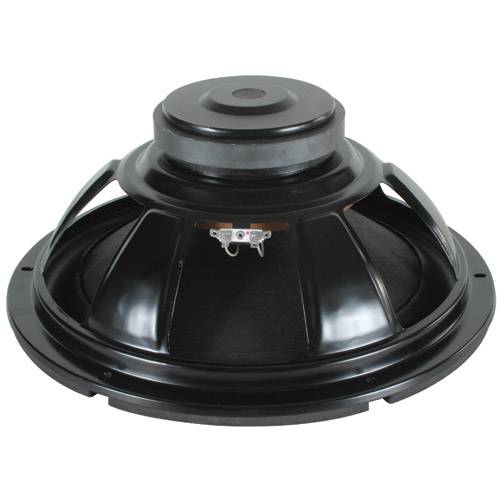

Radio Shack produced the Realistic Mach One speaker for almost ten years, beginning in the 1970s. The Mach One 15" 3-way system is considered one of the finest loudspeakers offered by Radio Shack. Over time, many Mach Ones have been lost due to foam rot and old age. We've produced a 15" driver that features the same warm, thundering sound characteristics as the original, but thanks to contemporary materials and technology will last far longer. Now you can resurrect your set of Realistic Mach One speakers with completely new woofers, giving them a fresh lease on life! Specifications: *Power handling: 125 watts RMS/250 watts max *VCdia: 2-1/4" *Le: 1.82 mH *Impedance: 8 ohms *Re: 7.2 ohms *Frequency response: 22-1,200 Hz *Fs: 22 Hz *SPL: 90 dB 2.83V/1m *Vas: 12.09 cu. ft. *Qms: 4.94 *Qes: 0.63 *Qts: 0.56 *Xmax: 2.5 mm *Dimensions: A: 15-1/4", B: 13-3/4", C: 6-1/4".

Modern reproduction of the famous Mach One design
Resurrect your Mach One speakers from the Seventies!
Same voicing but up-to-date materials and technology
2-1/4" copper voice coil on brass former
Replaces the 4024 8 ohm version (1976-1981)
Also available in a 4 ohm version
Great results in custom acoustic suspension designs, too!
