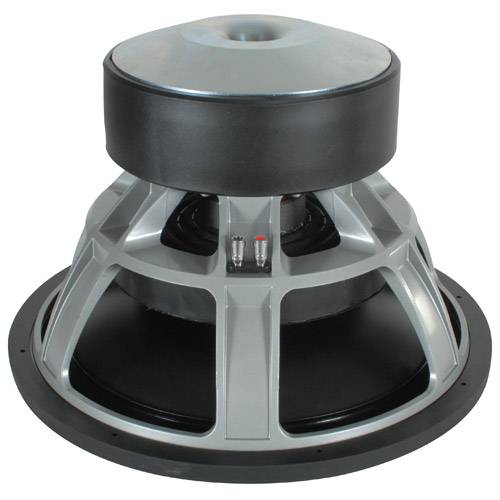

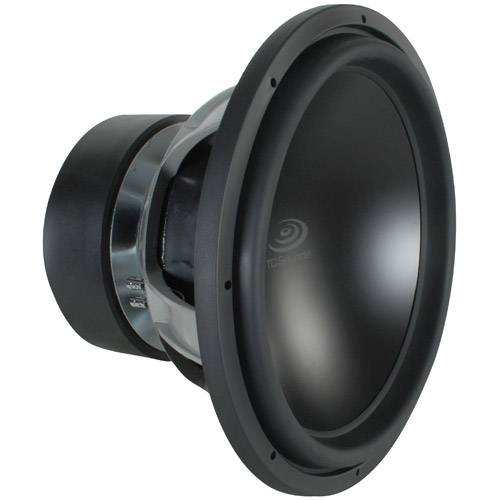

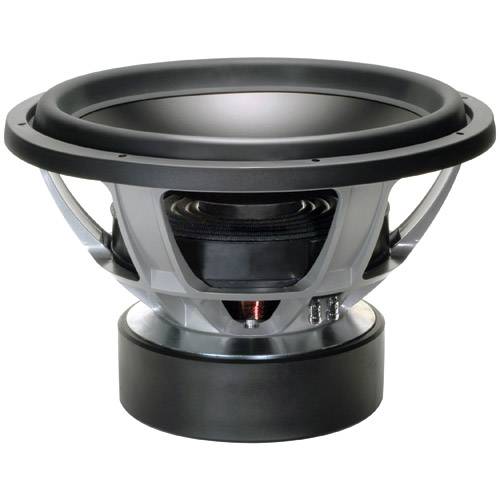

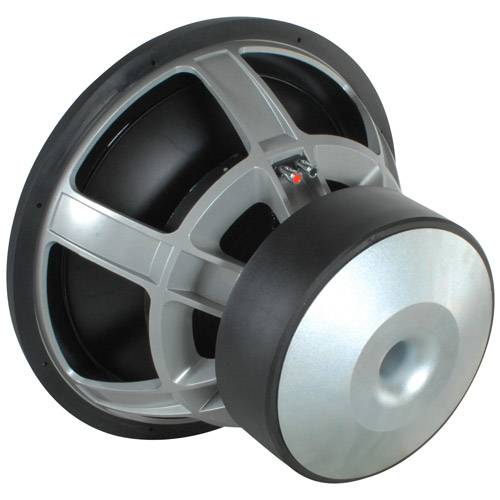

Electronics Gear- Electronics,Computer Sales and Service: TC Sounds LMS Ultra 5400 18" 2000 watts RMS DVC Subwoofer, Speaker Components (Drivers), 293-666

Designed to be absolutely precise, and absolutely loud is the LMS Ultra 5400. The TC Sounds flagship is the most linear lowest distortion highest displacement low frequency driver in the world. Nothing, and we mean nothing, will outperform this driver for low-end displacement, ultra-low distortion, or SPL. Used in some of the best recording studios and high-end audio systems. Specifications: • Power handling: 2,000 watts RMS/8,000 watts peak • VCdia: 4" • Le: 2.8 mH • Impedance: 2 ohms per coil x 2 • Re: 3.78 ohms • Frequency range: 15 - 150 Hz • Fs: 20.5 Hz • SPL: 89.7 dB • Vas: 8.50 cu. ft. • Qms: 7.6 • Qes: 0.34 • Qts: 0.33 • Xmax: 38.1 • Dimensions: Overall diameter 18.52", Cutout diameter 16.83", Depth 11.54". • Weight: 86.2 lbs. Note: All specifications are with voice coils connected in series.

High-temperature low eddy-current stainless steel voicecoil former
Patent-pending 2+2 ohm dual voicecoil LMS motor technology, 4" diameter voicecoil
11" linear spider suspension with large integral lead-wires
525 oz. magnet motor structure
Patent-pending XBR tall profile surround for 3" peak-to-peak travel
Field-replaceable top assembly system
Large anti-flux-modulation shorting ring

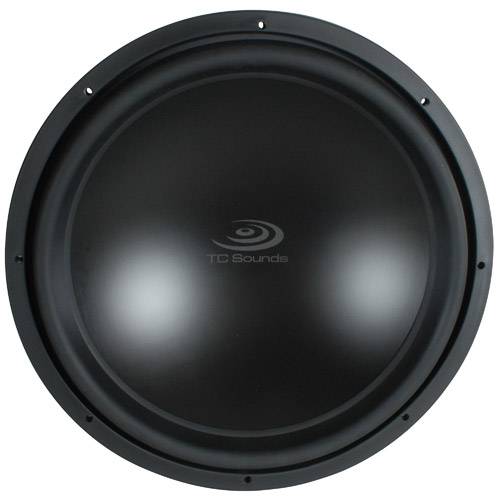

Single dish aircraft-grade Aluminum alloy cone
