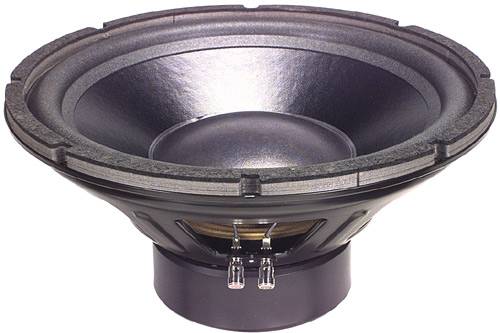

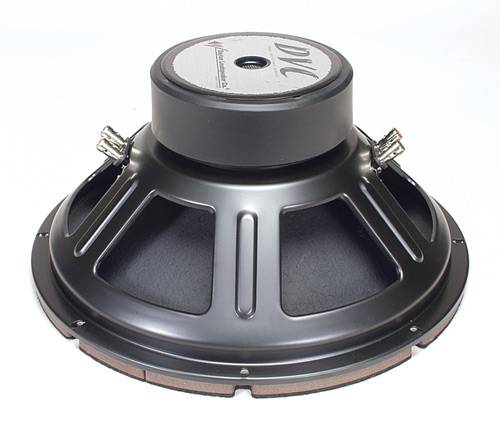

Dayton DVC385-88 15" DVC Series Subwoofer
Dayton DVC385-88 15" DVC Series Subwoofer

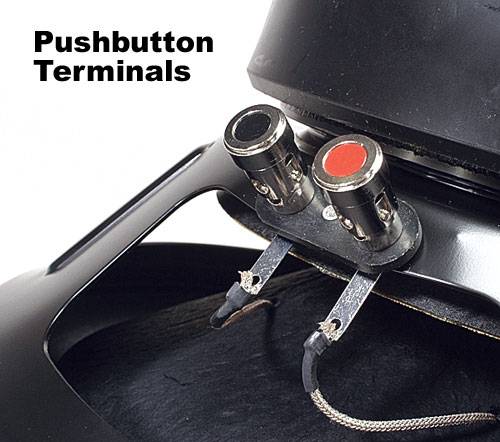

These DVC subwoofers are the most versatile drivers in the Dayton Loudspeaker line up. They were engineered to provide very good performance in sealed, vented, bandpass or even transmission line designs. The dual 8 ohm voice coils allow for use in a variety of applications and wiring configurations. Each driver features a heavy gauge stamped steel frame, super stiff Kevlar impregnated paper cone, thick foam surround, flat progressive spider, vented pole piece, dual high power Kapton voice coils, heavy duty braided tinsel leads, and rubber magnet cover. Made in the U.S.A. 5 Year Limited Warranty. Specifications: (Note: All specifications are with voice coils connected in parallel) * Power handling: 350 watts RMS/per coil, 600 watts total * Voice coil diameter: 2" * Le: 1.82 mH * Impedance: 8 ohm per coil / 4 ohm total * Re: 2.8 ohms * Frequency range: 20-450 Hz * Magnet weight: 112 oz. * Fs: 19 Hz * SPL: 90 dB 1W/1m * Vas: 8.2 cu. ft. * Qms: 8.66 * Qes: .38 * Qts: .36 * Xmax: 15.1mm * Dimensions: Overall Diameter: 15-1/8", Cutout Diameter: 13-7/8", Mounting Depth: 7-3/8", Magnet Diameter: 6-1/2". These DVC subwoofers are the most versatile drivers in the Dayton Loudspeaker line up. They were engineered to provide very good performance in sealed, vented, bandpass or even transmission line designs. The dual 8 ohm voice coils allow for use in a variety of applications and wiring configurations. Each driver features a heavy gauge stamped steel frame, super stiff Kevlar impregnated paper cone, thick foam surround, flat progressive spider, vented pole piece, dual high power Kapton voice coils, heavy duty braided tinsel leads, and rubber magnet cover. Made in the U.S.A. 5 Year Limited Warranty. Specifications: (Note: All specifications are with voice coils connected in parallel) * Power handling: 350 watts RMS/per coil, 600 watts total * Voice coil diameter: 2" * Le: 1.82 mH * Impedance: 8 ohm per coil / 4 ohm total * Re: 2.8 ohms * Frequency range: 20-450 Hz * Magnet weight: 112 oz. * Fs: 19 Hz * SPL: 90 dB 1W/1m * Vas: 8.2 cu. ft. * Qms: 8.66 * Qes: .38 * Qts: .36 * Xmax: 15.1mm * Dimensions: Overall Diameter: 15-1/8", Cutout Diameter: 13-7/8", Mounting Depth: 7-3/8", Magnet Diameter: 6-1/2".

DISCONTINUED ITEM, DISPLAYED FOR REFERENCE PURPOSES ONLY.


Email Friend

Product Question
List Price: $299.99
Your Price: $139.85


« Previous | Next »

Dayton DVC385-88 15" DVC Series Subwoofer
Product Reviews

No Reviews For This Product.
