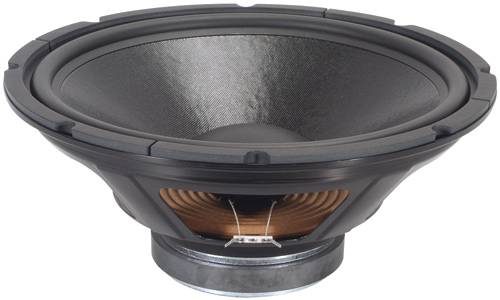

Electronics Gear- Electronics,Computer Sales and Service: Dayton DC380-8 15" Classic Woofer, Speakers, 295-325

The Dayton Classic 15" woofer is excellent as a replacement driver or for new system design and construction. The versatile set of parameters makes it suitable for sealed or vented enclosure designs. With impressive bass performance and smooth overall response, it is an excellent choice for any DIY three-way loudspeaker project. Specifications: * Power handling: 100 watts RMS/150 watts max * VCdia: 2" * Le: 3.34 mH * Impedance: 8 ohms * Re: 6.5 ohms * Frequency range: 20-1,500 Hz * Fs: 22 Hz * SPL: 92.8 dB 1W/1m * Vas: 10.80 cu. ft. * Qms: 3.52 * Qes: .39 Qts: .35 * Xmax: 4.35mm * Dimensions: A: 15", B: 14", C: 6-3/8".

Treated paper cone provides smooth response and low energy storage
Aluminum former, vented pole piece, and porous dustcap for high power handling
Large diameter flat spider and healthy Xmax for clean bass
