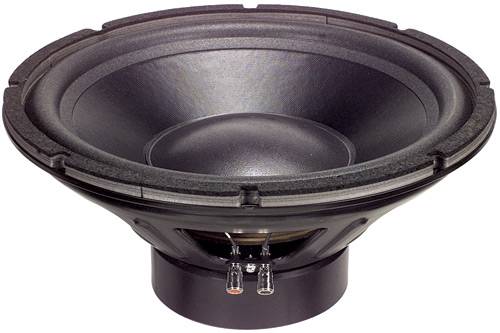

Electronics Gear- Electronics,Computer Sales and Service: Dayton IB385-8 15" Infinite Baffle Subwoofer, Speaker Components (Drivers), 295-455

The Dayton Loudspeaker IB series subwoofers are designed to produce extremely low, clean, uncolored bass in infinite baffle situations. Ideally, the subwoofers are situated between the listening room and an attic, basement, or garage using the floor, ceiling, or walls to separate the front and rear sound waves. Benefits of the infinite baffle approach include extreme low-frequency output, very clean and distortion-free sound, lack of large enclosures within the room, and amazingly loud bass with modest power amplifiers. Combining high sensitivity, good mechanical damping, and excellent excursion capabilities, the IB series subwoofers are the only drivers on the market designed specifically for infinite baffle situations. Made in the U.S.A. 5 year Limited Warranty. Specifications: * Power handling: 350 watts RMS/600 watts max * VCdia: 2" * Le: 3.08 mH * Impedance: 8 ohm * Re: 5.2 ohms * Frequency range: 20-500 Hz * Magnet weight: 90 oz. * Fs: 22 Hz * SPL: 88.2 dB 1W/1m * Vas: 8.79 cu. ft. * Qms: 8.92 * Qes: .63 * Qts: .59 * Xmax: 14.3 mm * Dimensions: Overall Diameter: 15-1/8", Cutout Diameter: 13-7/8", Mounting Depth: 7-3/8", Magnet Diameter: 6-1/2".

Long Excursion Design
Heavy Gauge Stamped Steel Frame
Extremely Rigid Kevlar Impregnated Paper Cone
Heavy Duty Treated Foam Surround
Single 8 ohm Voice Coil on Kapton Former
Bumped Back Plate
Vented Pole Piece
