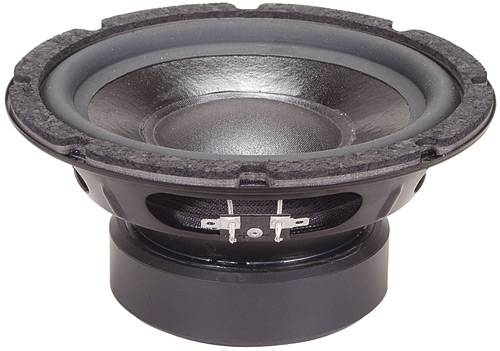

Electronics Gear- Electronics,Computer Sales and Service: Dayton QT210-4 8" Quatro Subwoofer 4 Ohm, Speaker Components (Drivers), 295-545

The Quatro Series subwoofers have been designed and built based on the well-respected platform of the Dayton Series II woofers. By implementing a 4 ohm voice coil and extending the excursion capabilities, the Quatro woofers now become serious contenders for home theatre and automotive use. The long excursion design and high sensitivity allows you to take advantage of modest power amplifiers, while the relatively high DC resistance makes them very friendly to 4-ohm stable amps and will not cause overheating or other amplifier stability problems. Specifications: * Power Handling: 150 watts RMS/300 watts max * VCdia: 1.5" * Le: 2.18 mH * Impedance: 4 ohms * Re: 3.90 ohms * Frequency range: 35-200 Hz * Magnet weight: 33 oz. * Fs: 42 Hz * SPL: 89.2 dB 2.83V/1m, 86.2 dB 1W/1m * Vas: .81 cu. ft. * Qms: 11.22 * Qes: .50 * Qts: .48 * Xmax: 9.5mm * Dimensions: Overall Diameter: 8.25", Cutout Diameter: 6.95", Mounting Depth: 4".

Bumped Back Plate
Heavy Gauge Stamped Steel Frame
Santoprene Rubber Surround
Kevlar Impregnated Coated Paper Cone
Large 4-layer V.C. with Kapton® Former
Vented Pole Piece
