Dayton MCA2550D 2.1 Channel Class D Amplifier
Dayton MCA2550D 2.1 Channel Class D Amplifier

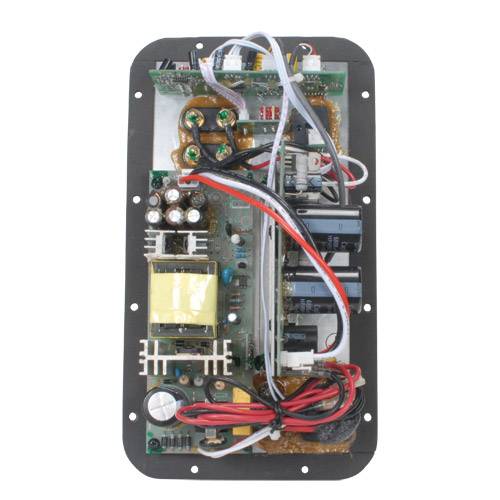

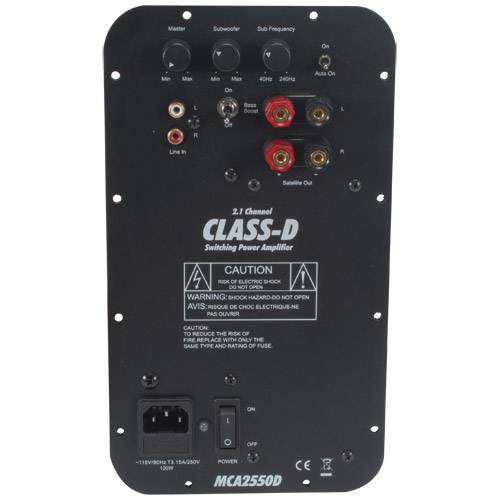

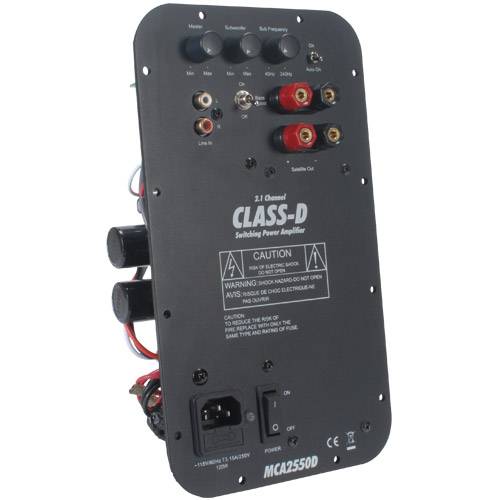

Create a custom 2.1 audio system with a fully-featured amplifier that drives satellite speakers and a mono sub from a single chassis! The MCA2550D was designed and built to provide years of high quality sound reproduction, and is ideal for use in music playback and home theater systems. This compact unit features efficient Class "D" technology, independent amplifiers, selectable subwoofer crossover frequency, auto on/off circuitry, and internal protection against shorted speaker loads, thermal faults, and overload conditions. Subwoofer Output Specifications: *Minimum speaker impedance: 4 ohms *Power output: 50 watts RMS  4 ohms *THD: Less than 1%  rated power *S/N ratio: 90 dB *Variable low pass frequency: 40 Hz to 240 Hz *Bass boost: +3 dB centered at 63 Hz. Satellite Output Specifications: *Minimum speaker impedance: 8 ohms *Power output: 25 watts RMS x 2  8 ohms *Frequency response: 250 Hz – 20 kHz *THD: Less than 1%  rated power *S/N ratio: 90 dB. Dimensions: *Overall: 5-7/8" W x 10-7/16" H x 4-1/2" D *Enclosure cutout: 4-5/8" W x 9-1/4" H.

  • Independent low and high frequency amplifiers
  • LF amp: 50 watts RMS, 4 ohms minimum
  • HF amp: 25 watts RMS x 2, 8 ohms minimum
  • Efficient Class "D" technology
  • Master level control
  • Subwoofer level control
  • Variable 12 dB/octave subwoofer crossover
  • Switchable +3 dB bass boost
  • Unbalanced line level input (female RCA)
  • Thermal, overload, and fuse protection circuitry
Email Friend

Product Question
List Price: $149.99
Your Price: $118.90
Out of Stock
Notify Me when it arrives?
