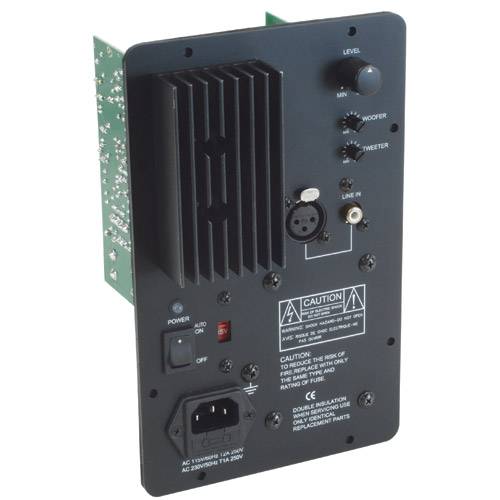

Dayton MCA3545 Bi-Amplifier
Dayton MCA3545 Bi-Amplifier
Now with XLR inputs, user selectable crossover points, and more HF power! Dayton Audio's MCA3545 Bi-Amplifier was designed for use in active 2-way loudspeakers for music playback, computer sound systems, and home theater applications. Independent high and low level controls and user-selectable crossover points enable customization to any drivers and listening environment. General Specifications: Selectable crossover points: 2.2 kHz, 3.2 kHz, 3.8 kHz, 4.5 kHz, and 5.2 kHz  24 dB/octave *Input voltage: Selectable 115V/230V, fuse protected. Low Frequency Output Specifications: *Power output: 45 watts RMS  8 ohms *Frequency response: 15 Hz-5.2 kHz *THD+N: < 1%  rated power *S/N ratio: 80 dB. High Frequency Output Specifications: *Power output: 35 watts RMS  8 ohms *Frequency response: 2.2 kHz-20 kHz *THD+ N: < 1%  rated power *S/N ratio: 80 dB. Dimensions: *Overall: 5-3/8" W x 8-5/8" H x 4-1/2" D; Enclosure cutout: 4-5/8" W x 7-3/4" H.
  • Easily adjustable separate low/high amps for improved dynamic range
  • Independent LM3886 output devices
  • Master level control
  • 24 dB/octave low pass and high pass filters
  • User selectable crossover frequencies
  • RCA and XLR line level inputs
  • Signal-dependent auto-on feature
  • Thermal, short circuit, and overload circuitry
Email Friend

Product Question
List Price: $179.99
Your Price: $98.70
Out of Stock
Notify Me when it arrives?
