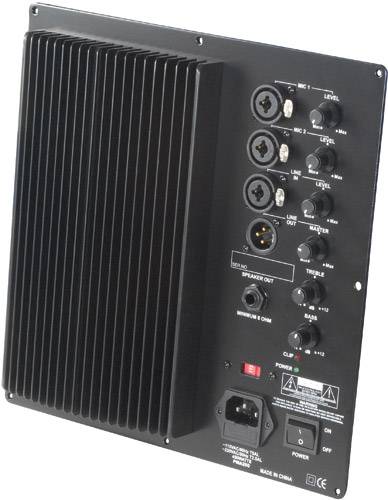

Dayton PMA250 250 Watt RMS PA Module with Mixer
Dayton PMA250 250 Watt RMS PA Module with Mixer

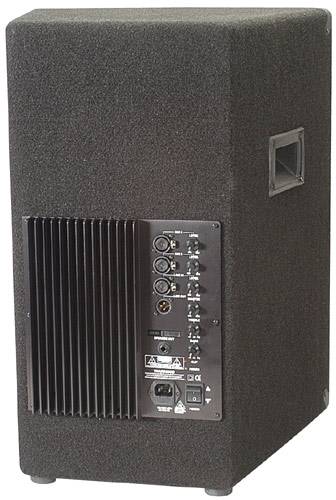

This amp is ideal for building active monitors or converting existing speakers to a powered audio system. Perfect for karaoke applications! The open frame module design mounts easily to speaker cabinets creating a self contained portable P.A. system. The unit features two microphone and one line level input, each with its own level control allowing for easy mixing of all inputs. Each input is compatible with both balanced and unbalanced sources. A handy line level output allows for easy daisy chaining of multiple amplifier units. The amp also has a convenient speaker output for connection of an additional "slave", or non-amplified speaker system, so only one amplifier module is needed for a two speaker system. The high performance class AB amplifier has all the power you need and includes thermal, short circuit and fuse protection for years of reliable use. Other useful features include clip indication LED, bass, treble and master volume controls. Includes 1/4" to RCA "Y" adaptor, 8 x 3/4" mounting screws and 6 ft. IEC power cord. 120/220 VAC switchable. Dimensions: plate = 10-7/16" square; cutout 9-1/2" square. 3-3/8" max depth at power transformer, bottom left of plate. S/N Ratio: 73 dB A-Weighted.
  • Build a portable P.A. system
  • Perfect for DJ and karaoke use
  • Built-in 3-channel mixer
  • Balanced (XLR) and unbalanced (1/4") mic & line level inputs
  • Speaker output to drive additional "slave" speaker system
  • Convenient bass and treble controls
Convert Existing Passive Speakers Into a Powered Audio System!

Specifications:
» Output Power:
· 150 Watts into 8W @ 0.09% THD (1 kHz)
· 250 Watts into 4W @ 0.9% THD (1 kHz)
» Frequency Response:
· MIC 1 & 2: 20 Hz-15 kHz (±3 dB)
· Line In: 10 Hz-18 kHz (±3 dB)
» Input Sensitivity:
· MIC 1 & 2: 5mV
· Line In: 500mV
» Voltage Input: 110~120 VAC, 60 Hz, 450 Watts
» Dimensions:
· Overall: 10-7/16" W x 10-7/16" H x 3-5/16" D
· Enclosure Cutout: 9-1/4" W x 9-1/2" H



Email Friend

Product Question
List Price: $299.99
Your Price: $149.00
