Dayton APA150 150 Watt RMS Power Amplifier
Dayton APA150 150 Watt RMS Power Amplifier

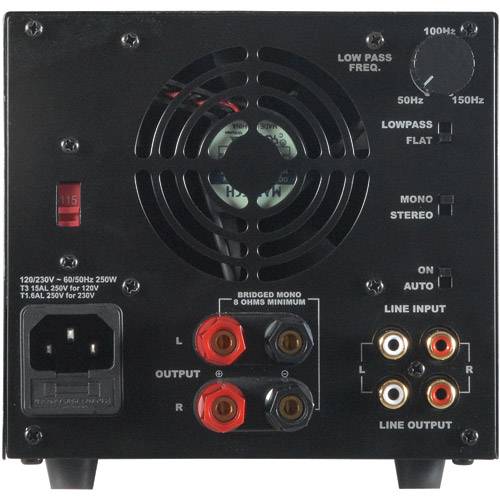

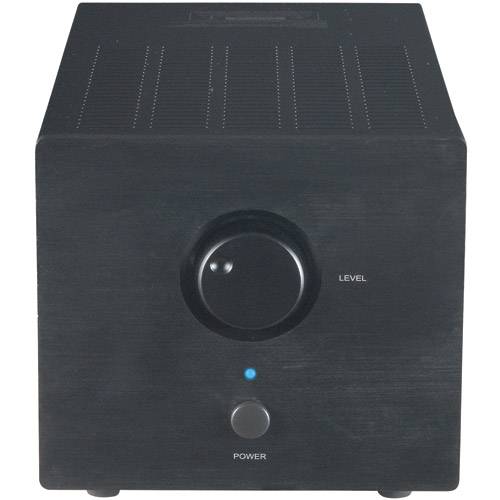

Amplifiers today need to be multi-faceted to keep up with the task at hand. Versatility is the foundation upon which the Dayton Audio APA150 is based. Configured in stereo mode, amplification is provided to a pair of speakers for stereo or surround playback. Select bridge-mono mode and the APA150 is configured for powering a center channel speaker, or a subwoofer/tactile transducer when used with the on-board low pass filter. Full-range line-level outputs allow for daisy chaining amplifiers for a multi-room whole house audio system or for bi-amp applications. A smaller chassis consumes less space than conventional amplifiers making placement options virtually endless. Key features of the APA150 are high current, discrete power transistors (used in premium amp designs), a hefty toroidal power supply transformer, low-noise forced air cooling, a fully adjustable—and defeatable—electronic 50-150 Hz low-pass filter (18 dB/octave), and complete protection against electrical shorting and thermal overload. Also included is auto-on/off, silent turn-off with no audible transient, gold plated RCA inputs/outputs, and 5-way binding posts. Features and Specifications: *Measured power output: 2 x 75 watts RMS (into 4 ohms less than 0.01% THD) *Signal-to-noise ratio: greater than 100 dB *Class A/B design topology *Input impedance: 47k ohms *Auto-on sensitivity: 3 mV *Voltage requirement: 120/230 VAC, 60/50 Hz *Dimensions: 5-1/2" H x 6" W x 11-1/2" D.

    * Toroidal power supply
    * 2 x 75 watts RMS power 4 ohms, 1 x 150 watts RMS bridged mono 8 ohms
    * High current, discrete output transistors
    * Adjustable 50-150 Hz low pass crossover
    * Gold-plated 5-way binding posts that accept up to 8 AWG wire


Email Friend

Product Question
List Price: $199.99
Your Price: $158.88
