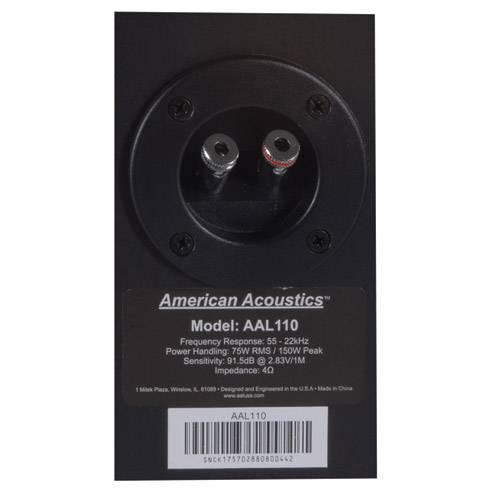

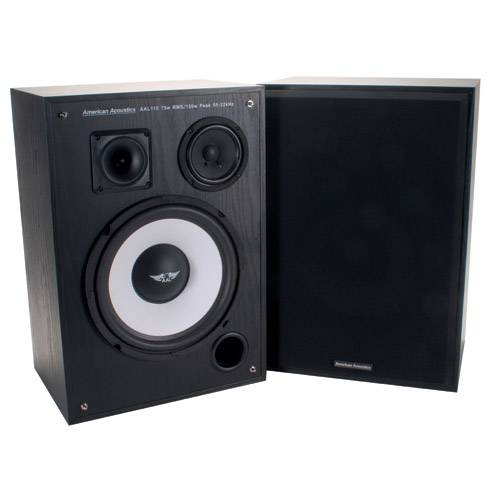

American Acoustics Labs (AAL) Series loudspeakers represent years of thorough research and development in the most modern techniques of speaker design and engineering. Using advanced technology and high quality electronics and components, AAL loudspeakers assure you of exceptional performance and value. American Acoustics Labs AAL110 features classic floor standing full range sound. Specifications: • Woofer: 10" composite paper cone • Midbass: 5" all-natural paper cone • Tweeter: Piezo element • Power handling: 75 watts RMS/150 watts peak • Frequency response: 55-22,000 Hz • Impedance: 4 ohms • Sensitivity: 91.5 dB 2.83V/1m • Crossover frequencies: 600 Hz (midbass), 4,000 Hz (tweeter) • Dimensions: 18-3/4" H x 13" W x 9" D.
- Classic floor standing full range sound
- Efficient bass response
- Piezo tweeter for superb, effortless transient response
- All-natural paper cone midbass for critical frequencies
Each AAL Series loudspeaker provides efficient, low bass response by utilizing a vented/bass reflex enclosure design. This design provides optimum low frequency response and maximum efficiency.
High Frequency Response
AAL systems use a piezo (or piezo-electric) tweeter which contains a piezoelectric crystal coupled to a mechanical diaphragm. The dynamic mass of the piezo offers a response which is very fast. Piezo tweeters offer a quality high-frequency sound source in a rugged, high-efficiency package.
A mid-bass driver makes this system function well in the critical midrange region that contains sounds easily distinguished by human ear, including musical instrument fundamental notes and, most importantly, human voice.
Low Frequency Drivers
Woofers in all of the AAL systems utilize Finite Element Analysis (FEA) designed motor structures with high temperature aluminum voice coil formers, and massive strontium ferrite magnet assemblies for maximum energy transfer and excellent cone control. A composite pulp cone and foam surround completes the woofer design. This configuration provides optimum low frequency response and maximum efficiency.
With a very strong manufacturing heritage, American Acoustics Labs has built its reputation through a vertically integrated approach to manufacturing. This allows American Acoustics Labs to control every aspect of the manufacturing process—from design to production—for exceptional product quality.
