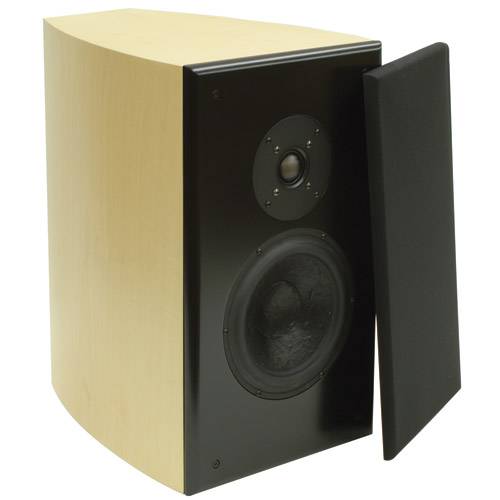

Dayton UA701CM Speaker Curved Maple
Dayton UA701CM Speaker Curved Maple
The Usher 701 is a classic two-way bookshelf system possessing accuracy, detail, and a transparency that must be heard to be believed! The bass response is articulate and effortless, the midrange is balanced and extremely accurate, and the high frequencies are smooth yet detailed. This speaker kit was created for Dayton Audio by world-renowned audio authority Dr. Joseph D'Appolito. Dr. D'Appolito's engineering prowess, in combination with the Usher 9930 1-1/8" tweeter and 8945A 7" woofer, has produced what we feel is one of the most exciting speaker kits available. Joe D'Appolito designed a speaker that is smooth and non-fatiguing, with accuracy rivaling that of many commercial studio monitors. Proven-quality components are used in the superbly optimized pre-assembled crossover. The speaker's on-axis frequency response is flat within ± 1.7 dB from 100-20,000 Hz. Dr. D'Appolito summed up the Usher 701 kit perfectly when he said, "I'm quite satisfied with the results!", and you will be too! This speaker is reasonably priced and easy to assemble, making it perfect for any audiophile—novice or experienced. Available in choice of cabinet finishes (gloss black, cherry, maple), and in straight- or arc-sided versions. Sold individually. Specifications: *Impedance: 8 ohms *Frequency response: 41 - 20,000 Hz *SPL: 86.5 dB 2.83V/1m *Power Handling: 80 watts RMS *Cabinet dimensions: 17" H x 10" W x 12.5" D.

    * Designed by Joe D’Appolito
    * Studio monitor-type accuracy (± 1.7 dB from 100 Hz - 20 KHz)
    * Low 41 Hz -3 dB point
    * Very rich, real wood cherry veneer cabinet
    * Power Handling: 80 watts RMS
    * Impedance: 8 ohms
    * Cabinet dimensions: 17" H x 10" W x 12.5" D
    * Pre-assembled crossovers

Now shipping with pre-assembled crossovers. No more soldering!

Dayton Audio® loudspeaker kits are designed to offer the speaker-building hobbyist truly high-end sound quality and aesthetic appeal. Because they are based on the Dayton Audio finished loudspeaker cabinets, the appearance of these systems is world-class. Your choice of three beautiful exterior surfaces (gloss black, cherry, and maple) and two styles (straight- or arc-sided) is sure to blend with any decor.

All engineering from cabinet to crossover was done in the U.S.A., ensuring Dayton Audio speakers will faithfully reproduce the music that you know, with tonal qualities that you prefer. Strong bass and a very smooth top end without unnatural midrange glare are traits common to all Dayton Audio designs. The superb performance of these speakers is guaranteed; the choice of which one is for you should be based on cabinet size, output requirements, driver preference, and personal cosmetic appeal. Although Dayton Audio kits can be assembled by a beginner in one or two hours, the speaker systems' acoustical performance reveals their superb technical pedigree.

Since these speakers are in kit form, you will realize substantial savings by building them yourself. All woodworking has been done; assembly consists of securing drivers and ports, attaching damping materials, and wiring the crossovers and drivers. The process does not require expensive tools or measurement equipment—a general knowledge of electronics is helpful but not required. Crossover networks are completely pre-assembled and ready to connect to the drivers and input terminals using the supplied wires and push-on terminals. No soldering required!

Dayton Audio offers a completely new level of quality previously unavailable in commercially available loudspeaker kits. All of the critical aspects of high-end loudspeaker design and manufacturing have finally been combined into the ultimate DIY kit-building experience. You can own a finished speaker system rivaling those found at exotic high-end salons, and best of all you'll be able to say "I built it myself!"

Email Friend

Product Question
List Price: $599.99
Your Price: $399.00
Out of Stock
Notify Me when it arrives?
