Fane International Woofer 10 Pro Audio DIE Cast MID Bass 300w RMS
Fane International Woofer 10 Pro Audio DIE Cast MID Bass 300w RMS

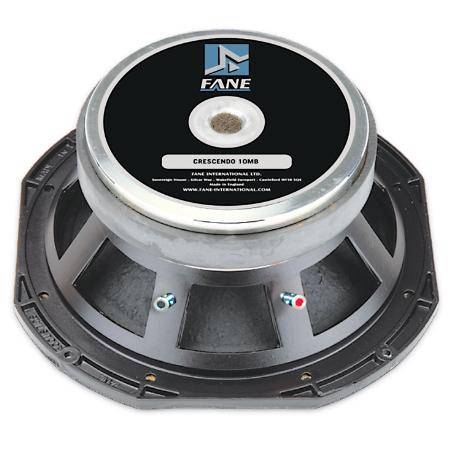

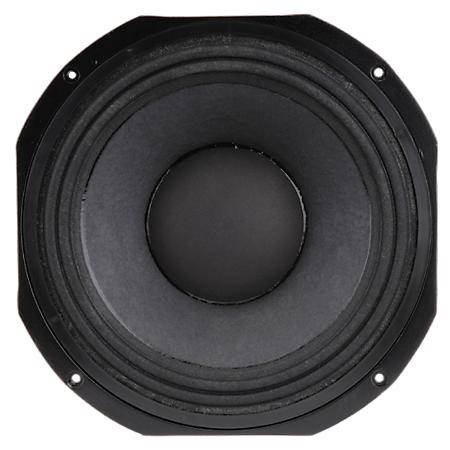

Crescendo Series Pro Sound 10" Woofer
Crescendo midbass drivers are intended for use in two–way ported enclosures. They feature die cast chassis with long throw motor systems and high linearity suspensions allowing solid bass reproduction at high power levels. Designed for use in ported enclosures, these may also be implemented in ultra compact top cabinets along with a subwoofer.

Product Description

  • 78 oz. magnet
  • 2.5" aluminum voice coil on a fiberglass former
  • Curvalinear paper cone with polyvinyl damped half-roll cloth surround
  • 300W/600W RMS/Peak Power Capacity
  • Model #10MB

    Specifications:
  • Power capacity: 300W/600W RMS/Peak
  • Frequency response: 48Hz ~ 4KHz
  • Fs: 54 Hz
  • Sensitivity: 96dB (W/M)
  • Re: 5.6 ohm
  • Qms: 5.17
  • Qes: 0.283
  • Qts: 0.268
  • Vas: 36 liters

    Measurements:
  • Overall Diameter: 11.16"/152.4mm
  • Baffle Hole (Front Mount): 8.97"/228mm
  • Flange Height: .305"/7.8mm
  • Mounting Hole Quantity and Diameter: 4x0.218”
  • Mounting Hole P.C.D.: 10.625/270mm
  • Overall Height: 4.33”"/110mm
  • Net Weight: 14.1 lb

  •
    Email Friend

    Product Question
    List Price: $399.99
    Your Price: $179.00
