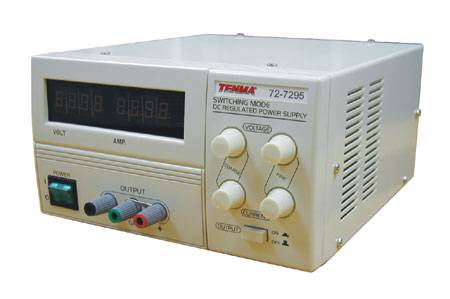

Adjustable Switch Mode Power Supply
Laboratory grade switching power supply provides adjustable 0 ~ 40VDC output, and 0 ~ 5A adjustable current limiting. OVP (Output Over-voltage Protection) protects voltage sensitive loads by shutting down the supply when output exceeds set voltage. Efficient switch mode design provides very high output capabilities, in a small, lightweight unit. Dual 31/2 digit LED displays simultaneously indicate output voltage and current.

Features:
Excellent load and line regulation
Low ripple and noise
Coarse/fine voltage and current adjustments
Auto cross over for CC (Constant Current) and CV (Constant Voltage) modes
Thermostat controlled fan
Overload, over temperature and short circuit protection

Specifications:
Output voltage: 0 ~ 40VDC
Output current: 0 ~ 5A
Load regulation: 0.5% + 100mV
Line regulation: 50mV
Ripple and noise: 20mV (p  p)
Power requirements: 90 ~ 265VAC 50/60Hz
Dimensions: 4-1/2" (H) x 8" (W) x 10-3/4" (D)
Weight: 6.6 lbs.
