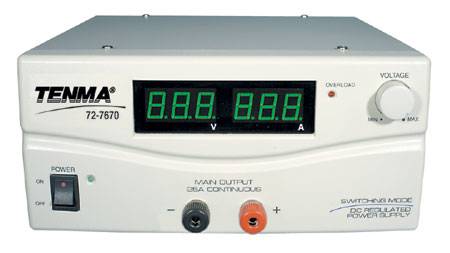

Heavy Duty 25 Amp Power Supply
High current supply is a popular choice for servicing automotive electronic devices and communications equipment. Variable 3 ~ 15VDC voltage range is suitable in a wide range of troubleshooting and repair applications. Efficient switch mode design provides high output current in a compact lightweight package. Whisper quiet fan cooling ensures reliable, long term operation. Front panel 3/16" diameter binding posts accepts banana plugs or spade terminals, providing convenient access for loads up to 25A.

Bright Dual LED displays

Large 5/8" digits

Simultaneously shows output voltage and current

Display accuracy to 0.1V, 0.1A

Excellent load and line regulation

Low ripple and noise

Overvoltage, overload, temperature and short circuit protection

Detachable IEC power cord

Specifications:

Output Voltage: 3 ~ 15VDC

Output Current: 25A

Load regulation: 200mV

Line regulation: 50mV ±10%

Ripple and noise: 5mV (RMS)

Power requirements: 115VAC, 60Hz

Dimensions: 4 1/4" (H) x 8 3/4" (W) x 8 3/4" (D)

Weight: 6.6 lbs.
