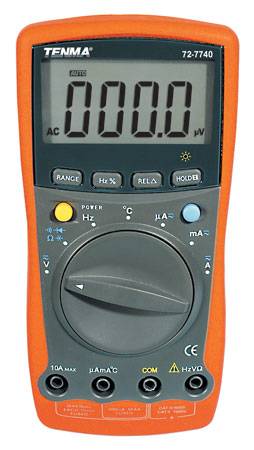

Autoranging Multimeter with Temperature
Full function multimeter offers a variety of ranges for every service application, plus Celsius temperature measurement. Rugged overmolded housing stands up to the daily rigors of field service use, and large LCD display is easily read from several feet away. Measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency and duty cycle.
Features:
3 3/4 digit, 5999 count backlit display
Large 3/4" digits with numerous on–screen icons
Switchable auto/manual range
Diode check
Continuity buzzer
Data hold
Relative mold
Low battery display
Included standard test leads, plus separate short leads for accurate capacitance checking
Thermocouple temperature probe
Comes complete with standard 9V battery and owners manual
Meets 600V CATIII, and 1000V CATII standards
Input Impedance: 10MΩ
Dimensions: 6 3/4" (H) x 3 3/8" (W) x 1 1/2" (D)
Ranges:
DC Voltage: 400mV, 4V, 40V, 400V, 1000V
AC Voltage: 4V, 40V, 400V, 750V
DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A
AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A
Resistance : 400Ω, 4KΩ, 40KΩ, 400KΩ, 4MΩ, 40MΩ
Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF
Temperature: -40ºC ~ 1000ºC
Frequency: 10Hz ~ 10MHz
Duty Cycle: 0.1% ~ 99.9%
Accuracy:
DC Voltage: ±(0.8%+1)
AC Voltage: ±(1% +5)
DC Current: ±(1%+2)
AC Current: ±(1.5%+5)
Resistance : ±(1%+2)
Capacitance: ±(3%+5)
Temperature: ±(1%+3)
Frequency: ±(0.1%+3)
