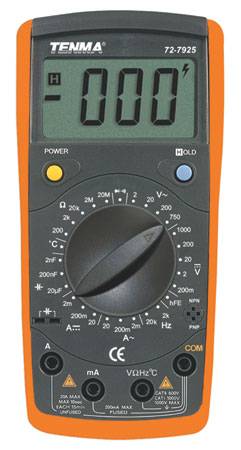

Large Display Multimeter with Transistor HFE
Full function multimeter offers a variety of ranges for every service application, including Fahrenheit temperature measurement, capacitance and Transistor HFE. Rugged molded housing uses a specially designed holder to stand up to the daily rigors of field service use. The large LCD display is easily read from several feet away.

Measures

AC/DC voltage

AC/DC current

Resistance

Capacitance

Temperature

Frequency and duty cycle

3-1/2 digit, 1999 count display

3/4" digits

Diode check

Continuity buzzer

Data hold

Low battery display

Meets 600V CATII and 1000V CATI standards

Includes

Standard test leads

Standard 9V battery

Owners manual

Specifications: Range:

DC Voltage: 200mV, 2V, 20V, 200V, 1000V

AC Voltage: 2V, 20V, 200V, 750V

DC Current: 2mA, 200mA, 20A

AC Current: 2mA, 200mA, 20A

Resistance : 200Ω, 2KΩ, 20KΩ, 2MΩ, 20MΩ

Capacitance: 2nF, 200nF, 20µF

Temperature: -40ºF ~ 1800ºF

Frequency: 2KHz, 20KHz

Input Impedance: 10MΩ

Dimensions: 6 3/4" (H) x 3 3/8" (W) x 1 1/2" (D)

Accuracy:

DC Voltage: ±(0.5%+1)

AC Voltage: ±(0.8% +3)

DC Current: ±(0.8%+1)

AC Current: ±(1%+3)

Resistance : ±(0.8%+10)

Capacitance: ±(4%+3)

Temperature: ±(2%+8)

Frequency: ±(1.5%+5)
