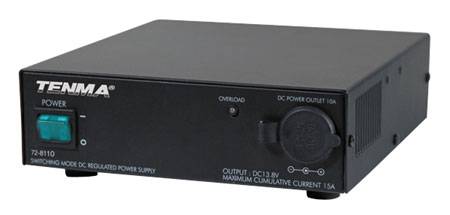

Tenma Compact Switch Mode Power Supply
Tenma  Compact Switch Mode Power Supply
Compact 15A Switch Mode Power Supply
Efficient switch mode power supply features a very compact footprint that makes it an ideal match for portable communications equipment. Its 50% duty cycle surge rating is comes in handy in demanding transmitting situations. It is also perfect for two way radio (including HF) and audio equipment including autosound and multimedia systems. Output voltage is fixed at 13.8VDC, recessed adjustment screw is located on the underside of the unit for user fine adjustment from 13.3 ~ 14.5VDC.

  • Ultra high RFI immunity
  • Very quiet thermostat controlled variable speed fan
  • Overvoltage and short circuit protection
  • Thermal cut off protection
  • LED overload indicator
  • Convenient front panel cigarette lighter receptacle

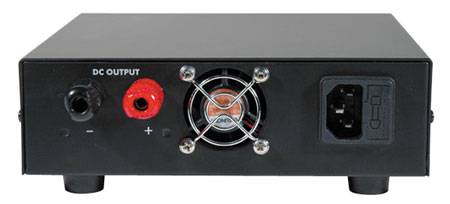

  • Rear panel heavy duty binding posts

    Specifications:
  • Output Voltage: 13.3 ~ 14.5VDC
  • Continuous Output: 15A
  • Duty Cycle: 18A (50% on/off)
  • Load regulation: 100mV
  • Line regulation: 50mV
  • Ripple and noise: 50mV (p-p)
  • Efficiency: >80%
  • Power requirements: 110VAC, 60Hz
  • Dimensions: 2.5" (H) x 7.2" (W) x 7.5" (D)
  • Weight: 3.91 lbs.

  •
    Email Friend

    Product Question
    List Price: $299.99
    Your Price: $149.00
