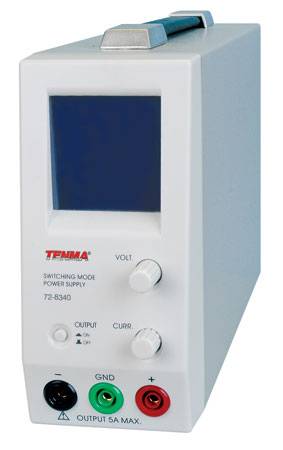

Tenma Power Supply Switch Mode Variable 1-60vdc, 0-1.6a
Tenma Power Supply Switch Mode Variable 1-60vdc, 0-1.6a
Switch Mode Laboratory DC Power Supplies
Precision adjustable supply provides adjustable 1~20VDC output with adjustable current limiting from 0~5A. It is ideal for test, measurement and service applications where tight voltage and current regulation are critical. Highly efficient switch mode design delivers outstanding performance from an extremely compact footprint. Unique separate output ON/OFF control allows voltage and current setting, with the supply output turned off. Part of a Complete Series, this slim supply occupies little bench space while providing very high precision and 90W of continuous output.

  • Backlit four digit LCD display
  • Simultaneous display of voltage and current
  • Auto selecting constant voltage (CV) and constant current (CC) modes
  • Ultra quiet convection cooling
  • Short circuit, overload, over voltage and thermal protection
  • 84% efficiency at maximum output
  • RoHs compliant

    Specifications:

  • Voltage range: 1.0 ~ 20.0VDC
  • Current range: 0 ~ 5.0A
    Voltage regulation
  • Load (from 10 ~ 100%): 70mV
  • Line (from 90 ~ 132VAC): 20mV
  • Ripple and noise (rms): 5mV
  • Ripple and noise (p-p): 30mV
    Current Regulation
  • Load (from 10 ~ 100%): 20mA
  • Line (from 90 ~ 132VAC): 20mA
  • Ripple and noise (p-p): 20mA
  • Dimensions: 6" (H) x 2.8" (W) x 9.8" (D)
  • Weight: 4.4 lbs.

  •
    Email Friend

    Product Question
    List Price: $399.99
    Your Price: $199.00
