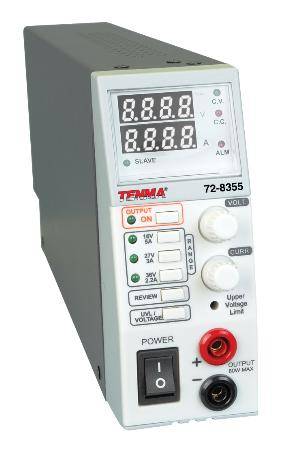

Tenma Power Supply Switch Mode Multi Range DC 80W Output
Tenma Power Supply Switch Mode Multi Range DC 80W Output
Multi Range Switch Mode Power Supply
Compact adjustable laboratory supply is ideal for test, measurement and service applications where tight voltage and current regulation are critical. Its unique feature is that it delivers up to 80W of constant output power in three selectable ranges. Output ON/OFF control allows user to set voltage and current with the supply’s output turned off. Additionally, a front panel “review” button displays voltage and current settings, without a connected load. Multiple units may be cascaded in master/slave configuration to suit higher voltage or current requirements.

Three selectable ranges in one unit

  • 0 ~ 16V, 0 ~ 5.0A
  • 0 ~ 27V, 0 ~ 3.0A
  • 0 ~ 36V, 0 ~ 2.2A
  • Efficient switch mode design
  • Extremely compact footprint
  • Output ON/OFF control, set voltage and current with the supply’s output turned off
  • “Review” function voltage and current settings, without a connected load
  • Multiple units may be cascaded in master/slave configuration
  • Remote sensing
  • Four digit LED display
  • Simultaneous display of voltage and current
  • Auto selecting constant voltage (CV) and constant current (CC) modes
  • Ultra quiet convection cooling
  • Short circuit, overload, over voltage and thermal protection
  • 75% efficiency at maximum
  • RoHs compliant

    Specifications:
    Voltage regulation

  • Load (from 0~100%): ≤20mV
  • Line : ≤4mV
  • Ripple and noise (p-p): ≤30mV
    Current Regulation
  • Load (from 0~100%): ≤10mA
  • Line: ≤10mA
  • Power requirements: 90 ~ 264VAC, 47 ~ 63Hz
  • Dimensions: 5" (H) x 2" (W) x 13" (D)
  • Weight: 4.2 lbs.

  •
    Email Friend

    Product Question
    List Price: $499.99
    Your Price: $299.00
