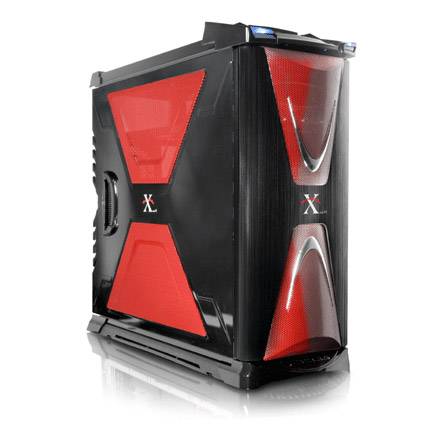

Electronics Gear- Electronics,Computer Sales and Service: Thermaltake Xaser VI Black with Red Accent , front USB & IEEE, Cases, CSTH-VG4000BNS

Product Information

	Optimized design for both liquid cooling and air cooling system
	Sliding removable hood with toolbox on top (Upgradable to LCS)
	10 PCI slots design for quad-graphic card configuration
	Tool free design for 5.25 device and PCI slot
	Sliding motherboard tray
	Independent thermal management for CPU, VGA & HDD
	Cable management system for better cable routing and internal air flow
	Evolutionary adjustable PSU supporting bridge
	MicroATX, ATX, Extend-ATX supported


Mechanical push-and- open front I/O cover	Stylized X shaped power button	I/O panel supported 2 E-SATA, 4 USB, 1 IEEE 1394 & HD Audio in/out.


Organized HDD cable management	Sliding Motherboard tray	Support up to 14 drive bays


7 5.25 slot-in to lock device	7 Modularized HDD tray	Removable HDD cage	Adjustable PSU supporting bridge


10 Screwless PCI slots with preserved screw holes	Swappable HDD module / Fan module	Extra bottom space for better LCS expandability. (After HDD / Fan module removed)


			HDD (intake) 140 x 140 x 25mm blue LED fan, 1000rpm, 16dBA or 120 X 120 X 25mm fan


			Front (intake) 140 x 140 x 25mm fan, 1000rpm, 16dBA or 120 X 120 X 25mm fan

			Bottom (intake) : Two 140 x 140 X 25 mm fans or Two 120 X 120 X 25 mm fans


			Rear (exhaust) : 120 x 120 x25 mm blue LED fan, 1300rpm, 17dBA

			Top (exhaust) : 140 x 140 x 25mm fan, 1000rpm, 16dBA or 120 X 120 X 25mm fan

Top (exhaust) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA
or 120 x 120 x 25 mm Fan, 1300rpm, 17dBA

Bottom (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA
or 120 x 120 x 25 mm Fan, 1300rpm, 17dBA

Front (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA
or 120 x 120 x 25 mm Fan, 1300rpm, 17dBA

VGA (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA
or 120 x 120 x 25 mm Fan, 1300rpm, 17dBA

TurboFan	TurboFan
140 x 140 x 25mm , 1000rpm, 16dBA	120 x 120 x 25mm , 1300rpm, 17dBA

Model	VG4000BWS
Case Type	Super Tower
Dimension (WDH)	605 x 250 x 660 mm 23.8 x 9.8 x 26.0 inch
Net Weight / Gross Weight	17.7 kg ; 39.1 lb / 20.5 kg ; 45.3 lb
Window side panel	Yes
Sliding motherboard tray	Yes
Cable management	Yes
Sliding hood	Yes
Adjustable PSU bridge	Yes
Material	Front door: Aluminum / Chassis: 1.0mm SECC
Color	Chassis color: Black / Metal mesh : Red
Cooling System	- Front (intake) : 140 x 140 x 25mm blue LED fan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional) - Rear (exhaust) : 120 x 120 x25 mm blue LED fan, 1300rpm, 17dBA - Top (exhaust) : 140 x 140 x 25mm TurboFan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional) - Bottom (intake) : Two 140 x 140 mm fans (optional) or two 120 x 120 x25 mm fan (optional) - VGA (intake) : 140 x 140 x 25mm TurboFan, 1000rpm, 16dBA or 120 x 120 x25 mm fan (optional)
Motherboards	9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (Extend ATX)
Drive Bays -5.25" Drive Bay -3.5" Drive Bay -3.5" Drive Bay (Hidden)	7 1 (Convertable from one 5.25" drive bay) 7
Front I/O	e-SATA connector x 2, USB2.0 x 4, IEEE 1394 Firewire x 1, HD Audio
Expansion Slots	10
