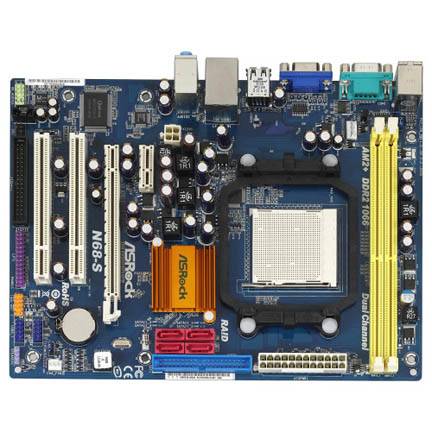

ASRock N68-S nForce 7025, Onboard Video, PCI-EX, LAN
ASRock N68-S nForce 7025, Onboard Video, PCI-EX, LAN

 Product Information

  1. Support for Socket AM2+ / AM2 processors: AMD Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  2. Support for AM3 processors: AMD Phenom II X4 / X3 and Athlon II X4 / X3 / X2 processors
  3. NVIDIA GeForce 7025 / nForce 630a
  • FSB 1000 MHz (2.0 GT/s)
  • Supports Dual Channel DDR2 1066 with AM2+ CPU, and DDR2 800/667/533 with AM2 CPU, 2 x DIMM slots, maximum capacity up to 8GB
  • Integrated NVIDIA GeForce 7025 graphics, DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 256MB
  • 1 x PCI Express x16 slot
  • 4 x SATAII 3.0 Gb/s, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions
  • 10/100 Ethernet
  • 5.1 CH Windows Vista Premium Level HD Audio (ALC662/VIA 1708S Audio Codec)
  • Supports Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver, Instant Boot
  • I/O Panel: 1 x VGA Port, 1 x RJ-45 LAN Port with LED, 4 x Ready-to-Use USB 2.0 Ports
General
CPU - Support for Socket AM2+* / AM2 processors: AMD Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Support for AM3 processors: AMD Phenom II X4 / X3 and Athlon II X4 / X3 / X2 processors*
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology

*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.
Chipset - NVIDIA GeForce 7025 / nForce 630a
Memory - Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB**

*Support with AM3 / AM2+ CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows XP and Windows Vista. For Windows XP 64-bit and Windows Vista 64-bit with 64-bit CPU, there is no such limitation.
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports Smart BIOS
 Audio, Video and Networking
Graphics - Integrated NVIDIA GeForce 7025 graphics
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
Audio - 5.1 CH Windows Vista Premium Level HD Audio (Realtek ALC662 / VIA VT1708S / VT1705 Audio Codec)
LAN - Realtek PHY RTL8201EL / 8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector - 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
-
Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- ATA 133 Cable (optional)
- 1 x SATA Data Cable (optional)
- 1 x SATA 1 to 1 Power Cable (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm
OS - Microsoft Windows 2000 / XP / XP 64-bit / Vista / Vista 64-bit compliant
Certifications - FCC, CE

Email Friend

Product Question
List Price: $129.99
Your Price: $79.00
