Electronics Gear- Electronics,Computer Sales and Service: Dell PowerEdge 2650 Dual Xeon 2.4Ghz cpu's,2gb Ram,3x36gb hdd,cd,fdd, Dell 2650 Servers, dell-2650-entry

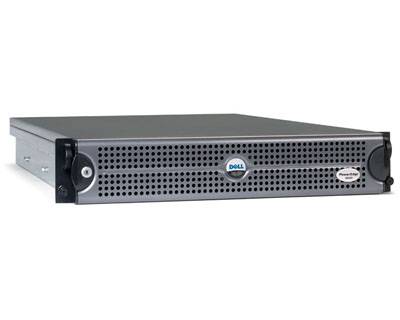

The Dell PowerEdge 2650 server is architecturally balanced to maximize processing speeds as well as provide high data input/output (I/O) and memory bandwidth. Featuring dual Intel Xeon processors with a 533MHz front side bus, the server is well suited for compute- and memory-intensive applications. Plus, it operates on the ServerWorks Grand Champion-LE (GC-LE) chipset that provides an incredible 4.2GB/s of memory bandwidth and up to 3.8GB/s of throughput on a five PCI bus segment architecture. The PowerEdge 2650 also incorporates new features such as high bandwidth PCI-X slots, dual Gigabit1 network interface cards (NICs) as well as high-speed double data rate (DDR) memory. In addition, the PowerEdge server offers an embedded dual channel Ultra3 (U160) SCSI controller that enables you to separate disk subsystems for different purposes on up to five internal SCSI drives. All of which help to improve speed and performance and maximize the capabilities of your server.

FEATURES DESCRIPTION:

Form factor 2U rack height
Processor(s) Up to two Intel® Xeon processors at 2.0GHz, 2.4GHz, 2.8GHz, 3.06 GHz and
3.2GHz with hyper-threading support
Front side bus 533MHz front side bus designed for fast data throughput
L2 cache 512KB advanced transfer cache designed to improve access time to server
data; 1MB L3 cache with 3.06GHz and 3.2GHz processors; 2MB L3 cache with
3.2 GHz processors
Chipset ServerWorks GC-LE Chipset supports five PCI buses: three PCI-X (1 x 64bit/133MHz,
2 x 64bit/100MHz), one 64bit/66MHz, one legacy bus (32bit/33MHz)
Memory 256MB - 12GB PC266 ECC DDR SDRAM
Six DIMM sockets on system board configurable for Spare Bank support
I/O channels Seven total: two full length, one half-length PCI-X slots (1 x 64bit/133MHz and 2
x 64bit/100MHz), two embedded Gigabit NICs (64-bit/100MHz), and dual channel
embedded Ultra3 (U160) SCSI/RAID controllers (64bit/66MHz)
RAID controller Embedded dual channel Ultra3 (U160) SCSI with 128MB cache (enablement optional)
Drive bays Hard drive bay for 5 x 1" or 2+3 hot-plug SCSI drives
Media bay for one 24X IDE CD-ROM or 8X IDE DVD ROM, one 3.5" 1.44MB diskette drive
Maximum internal storage 730GB (5 x 146GB)
Hard drives 18GB, 36GB, 73GB, 146GB Ultra320 SCSI
External storage SCSI and fibre channel storage systems
Network interface card Two integrated Broadcom Gigabit BaseT with load balancing and failover support
Power Optional, hot-plug, redundant 500W power supplies
Availability Spare Bank configurable ECC memory with ChipKill technology (512MB, 1GB
and 2GB DIMMs required)
Dual channel embedded Ultra3 (U160) RAID with battery-backed cache
Duplexing support
Dual embedded NICs with failover and load balancing support
Hot-plug redundant power supplies
Hot-plug hard drives and cooling fans
High availability fibre channel and SCSI cluster support
Front mounted keyboard, video and monitor ports
Embedded Remote Access (ERA) provides server management capability
Graphics Integrated ATI-Rage XL controller with 8MB of SDRAM (not upgradable)
Optional software Novell NetWare Version 5.1; Novell NetWare Version 6.0 (supported, factory
installation not available); Microsoft Windows Server 2003 Enterprise
Edition; Microsoft Windows Server 2003 Standard Edition; Microsoft Windows
Server 2003 Web Edition; Microsoft Windows 2000 Server; Microsoft Windows
2000 Advanced Server; Red Hat Linux 8.0, Red Hat Linux ESV2.1, and Red Hat
Linux ASV2.1
Dimensions (H x W x D) 3.375” x 19.0” x 27.5” (8.57cm x 48.26cm x 69.85cm)

EMAIL US FOR A CUSTOM SYSTEM QUOTE.WE CAN BUILD ANY CONFIGURATION YOU REQUIRE,

DELL POWEREDGE 2650 2x-DUAL XEON 2.4GHZ CPU'S 400MHZ FSB 512K CACHE, 2GB DDR1 PC1600 ECC MEMORY, FLOPPY DRIVE, PERC 3/DI ON-BOARD RAID CONTROLLER WITH 128MB RAID MEMORY, 108GB (3x-36GB 10K RPM U160 SCSI HARD DRIVES, CD ROM DRIVE, FRONT BEZEL, DUAL 2x-10/100/1000 NETWORK CARDS, DUAL 2x- 500 WATT POWER SUPPLIES.

DELL FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION,FULLY PROFESSIONAL TESTED BEFORE SHIPPED

3 YEARS PARTS REPLCEMENT WARRANTY - FREE

Supplier Warranty:

3 years limited parts replacement warranty
DELL FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION
