The PowerEdge 2800 server features enterprise-level high availability features like optional hotpluggable
redundant power, hot-pluggable redundant cooling and even hot-pluggable PCI Express
slots which allow you to replace components on the fly without taking your server offline. In addition,
memory availability features such as ECC, SDDC, memory mirroring and spare bank memory help to
ensure high data integrity and uptime.

Expandable Performance and Incredible Storage Capacity
The PowerEdge 2800 system delivers the latest in processor, memory and local I/O throughput
technologies. It features dual Intel Xeon processors (single-core or dual-core) with Intel Extended
Memory 64 Technology that supports both 32-bit and 64-bit applications, the new Intel E7520 chipset
and up to 16GB of DDR-2 memory1. Plus, it includes as many as seven PCI/PCI-X or PCI Express slots.
The PowerEdge 2800 server’s combination of high performance and large storage capacities make it
an ideal choice for server and storage consolidation projects. And this flexible server can be deployed
as either a tower or a 5U rack-mountable unit. The ten hard drive bays not only provide scalable high
performance, they also offer the ability to store multiple terabytes of data to help you keep up with
rapidly growing storage requirements.

FEATURES Dell PowerEdge 2800 Server

Form factor Tower or 5U rack-mount
Processors Up to two single-core 64-bit Intel Xeon processors at up to 3.8GHz
or up to two dual-core 64-bit Intel Xeon processors at 2.8GHz
Front side bus 800MHz
Cache Up to 2MB L2 per processor core
Chipset Intel E7520
Memory 256MB/12GB DDR-2 400 SDRAM; 16GB with availability
of dual rank 4GB DIMMS1
I/O channels Seven total: two PCI Express slots (1 x 4 lane and 1 x 8 lane);
four PCI-X slots (64-bit/133MHz); one PCI slot (32-bit/33MHz, 5v)
Drive controller Embedded dual channel Ultra320 SCSI
RAID controller Optional dual channel ROMB (PERC 4/Di), PERC 4/DC and PERC 4e/DC
Drive bays Eight 1" + Two 1" Ultra320 hot-plug SCSI drives with internal tape
drive support
Maximum internal storage Up to 1.46TB or up to 3TB with availability of 300GB hard drive
Hard drives2 36GB, 73GB, 146GB and 300GB (10,000 rpm) Ultra320 SCSI
18GB, 36GB, 73GB and 146GB (15,000 rpm) Ultra320 SCSI
Internal storage 10K/15K RPM SCSI drives
External storage Dell PowerVault SCSI and Dell/EMC fibre channel storage
Tape backup options Internal: PowerVault 100T and 110T
External: PowerVault 114T, 124T, 132T and 136T
Network interface card Dual embedded Intel 10/100/1000 Gigabit3 NIC, Intel PRO/1000 MT Gigabit
NIC (copper), Intel PRO/1000 MF Gigabit NIC (fibre)
Power supply 930W, optional hot-plug redundant power
Availability ECC memory, Hot-plug PCI Express slots,Single Device Data Correction
(SDDC), Spare Bank, Memory Mirroring; hot-plug SCSI hard drives;
optional hot-plug redundant power; hot-plug redundant cooling; tool-less
chassis; high availability fibre channel and SCSI cluster support;
optional ROMB with 256MB battery-backed cache; optional Split
Backplane; LCD panel; Active ID
Video Embedded ATI Radeon 7000-M with 16MB SDRAM
Remote management Baseboard Management Controller with IPMI 1.5 compliance, accessible
via network or serial port; optional slot-free DRAC 4/I
Systems management Dell OpenManage
Rack support 4-post (Dell rack) and 3rd party
Operating systems Microsoft Windows Server 2003, Standard x64 Edition; Microsoft
Windows Server 2003, Enterprise x64 Edition; Microsoft Windows
Server 2003, Standard Edition; Microsoft Windows Server 2003,
Enterprise Edition; Microsoft Windows Small Business Server 2003,
Standard/Premium; Red Hat Enterprise Linux v2.1 AS and ES; Red Hat
Enterprise Linux v3 AS and ES; Red Hat Enterprise Linux v3 Advanced
Server EM64T; Novell NetWare 5.1 and 6.5

EMAIL US FOR A CUSTOM SYSTEM QUOTE.WE CAN BUILD ANY CONFIGURATION YOU REQUIRE,

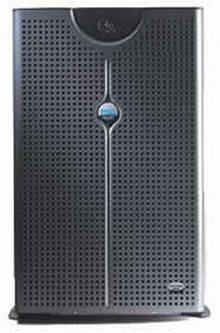

DELL POWEREDGE 2900 2x-DUAL XEON 3.2GHZ CPU'S 1066MHZ FSB 1MB CACHE, 4GB DDR2 PC5300 ECC MEMORY, FLOPPY DRIVE, PERC 5I ON-BOARD RAID CONTROLLER WITH 256MB RAID MEMORY, 2TB (4x-500GB) 7.2K RPM U320 SCSI HARD DRIVES, DVD ROM DRIVE, FRONT BEZEL, DUAL 2x-10/100/1000 NETWORK CARDS, DUAL 2x- 930 WATT POWER SUPPLIES.
DELL FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION,FULLY PROFESSIONAL TESTED BEFORE SHIPPED

3 YEARS PARTS REPLCEMENT WARRANTY - FREE

Supplier Warranty:

• 3 years limited parts replacement warranty
• DELL FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION
