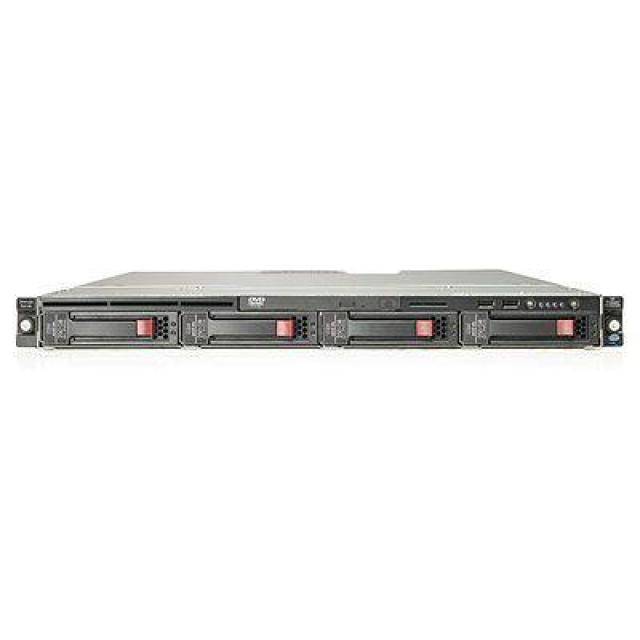

Electronics Gear- Electronics,Computer Sales and Service: HP Proliant DL160 G5 Dual Quad Xeon 2.33Ghz cpu,8gb Ram,4x1TB hd,dvd, HP DL160 G5 Servers, dl160-g5-workhorse

The HP ProLiant DL160 G5 features Intel’s latest Quad-Core Xeon processors and chipset, four drive bays and the high-efficiency options in a dense 1U form factor. This product is an affordable 1U, dual processor capable server equipped with essential performance features that provide customers with a platform to design a fully optimized solution. It is ideal for general purpose and high performance computing.

General
Type	Server
Recommended Use	Small business, corporate business
Product Form Factor	Rack-mountable - 1U
Server Scalability	2-way
Front Accessible Bays Qty	1
Hot-Swap Bays Qty	4
Width	17.6 in
Depth	26.9 in
Height	1.7 in
Weight	37 lbs
Localization	United States

Processor
Type	Intel Quad-Core Xeon E5405 / 2 GHz
Multi-Core Technology	Quad-Core
64-bit Computing	Yes
Installed Qty	1
Max Supported Qty	2
Upgradability	Upgradable

Cache Memory
Type	L2 cache
Installed Size	12 MB
Cache Per Processor	12 MB ( 2 x 6MB (6MB per core pair) )

Mainboard
Chipset Type	Intel 5400
Data Bus Speed	1333 MHz

RAM
Installed Size	1 GB / 32 GB (max)
Technology	DDR2 SDRAM - Advanced ECC
Memory Speed	533 MHz
Memory Specification Compliance	PC2-5300
Form Factor	FB-DIMM 240-pin
Features	Fully buffered
Configuration Features	2 x 512 MB
Upgrade Rule	4 modules at a time

Storage Controller
Type	1 x RAID - plug-in card
Controller Interface Type	Serial ATA-150 / SAS
RAID Level	RAID 0, RAID 1

Storage Controller (2nd)
Type	1 x IDE - integrated
Controller Interface Type	IDE/ATA

Storage
Hard Drive	None

Monitor
Monitor Type	None

Graphics Controller
Type	Integrated

Networking
Networking	Network adapter - integrated
Ethernet Ports	2 x Gigabit Ethernet
Ethernet Controller(s)	HP NC105i
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Features	Wake on LAN (WoL), ACPI support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity
Expansion Bays Total (Free)	1 ( 1 ) x front accessible - 5.25" Slim Line ¦ 4 ( 4 ) x hot-swap - 3.5" x 1/3H
Expansion Slots Total (Free)	1 ( 1 ) x PCI Express x16 - low-profile ¦ 1 ( 1 ) x PCI Express x16 - full-length, full-height ¦ 8 ( 6 ) x memory - FB-DIMM 240-pin ¦ 2 ( 1 ) x processor
Interfaces	1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) ¦ 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) ¦ 1 x serial - RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 5 x USB - 4 pin USB Type A ( 2 front, 2 rear, 1 internal ) ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x management - HP iLO - RJ-45

Miscellaneous
Features	Administrator password, power-on password, keyboard password, disk configuration lock, diskette I/O control, serial port I/O control, QuickLock
Compliant Standards	ACPI 1.0b

Power
Device Type	Power supply
Installed Qty	1
Max Supported Qty	1
Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Provided	650 Watt

Operating System / Software
OS Certified	Novell NetWare, Microsoft Windows 2000 Server, Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, SunSoft Solaris 10, UnitedLinux
Software	Drivers & Utilities

Warranty
Service & Support	1 year warranty
Service & Support Details	Limited warranty - parts and labor - 1 year - on-site - response time: next business day

Environmental Parameters
Min Operating Temperature	50 °F
Max Operating Temperature	95 °F
Humidity Range Operating	10 - 85

EMAIL US FOR A CUSTOM SYSTEM QUOTE.WE CAN BUILD ANY CONFIGURATION YOU REQUIRE

HP PROLIANT DL160 G5 2x-DUAL QUAD XEON 2.33GHZ CPU'S, 8GB RAM PC5300, FLOPPY DRIVE, 4x-1TB 10K RPM U320 SCSI HARD DRIVES, DVD ROM DRIVE, SINGLE 1x-10/100/1000 NETWORK CARD, DUAL 1x- 350 WATT POWER SUPPLY.

HP FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION,FULLY PROFESSIONAL TESTED BEFORE SHIPPED

3 YEARS PARTS REPLCEMENT WARRANTY - FREE

Supplier Warranty:

3 years limited parts replacement warranty
H.P. FACTORY RECERTIFIED UNIT-FACTORY REBUILT TO LIKE NEW CONDITION
