Power Jack 3500w/7000w GRID TIE INVERTER,50V DC/220V AC INVERTER
Power Jack 3500w/7000w GRID TIE INVERTER,50V DC/220V AC INVERTER

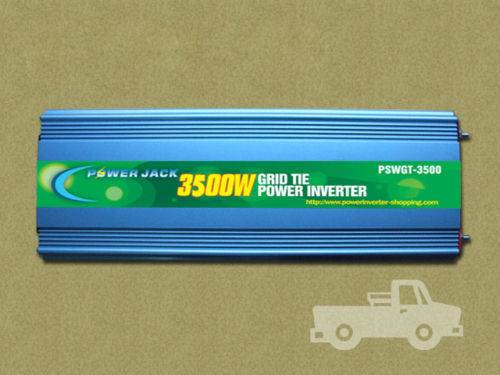

Power Jack 3500W GRID TIE INVERTER

Input 50-100V

Output 195V-240V

for solar panel/wind turbine use


这里是说明



Features:

1. power jack grid tie inverter is designed for small solar panel & wind energy market, it's suitable for family enengy system.

2. this inverter can directly use solar panel, wind charger through inverter to home grid.

3. easy to installation, just need solar panel, grid tie inverter, then directly can put into home grid.



note: this inverter only has grid tie inverter function, do not have tranditional inverter function, pls do not connect the battery for 12v dc source, for further questions, pls leave message to ask, tks.



1.idea for power jack

The inverter can be connected to any outlet at home, when this line run by the conventional electric network. The inverter IC will  monitors the volume, frequency and phase of the home grid, then produce a pure sine wave that the frequency and phase will be match the grid's, and the volume will be higher than the grid's, then according to our current controlled PWM, to control the output power to the grid. The inverter will puts out power when the home grid is on.

 2. why use power jack grid tie inverter?

when you use solar panel through grid tie inverter, your home power meter will reduce the speed(if you are using other electric appliances), or your home power meter will backward(if you are not use any appliances)

 3. difference of power jack grid tie inverter

traditional grid tie inverter is the solar panel are connect in series, so if one solar panel did not work or bad efficiency, then the whole system will be effects, but power jack grid tie inverter, you can use every inverter in parallel, in this moment, each inverter has it's own MPPT, can make every solar panel got the max power.

4. island protection

power jack grid tie inverter has 3 green light, when the charge fucntion is normal, then this 3lights will turn on, but if there are not dc sources(like in the night, no sun shine or raining day), the red led light will turn on, the inverter will stop to work, in this moment, the inverter will close the door, the home grid power will not back to inverter.





Brand

Power Jack

Model No.

PSWGT-3500

Output Power

3500W

Output Wave Form

PURE SINE WAVE

DC Input Voltage

DC 50-100V(solar panel/wind turbine)

AC Output Voltage

AC195-240V

Frequency

60Hz/50Hz

Efficiency

87%

No Load current Draw

0.7A

Distortion

2%

Temperature Protection

55C ± 5

Weight

 11 kg

Made in

China


 Accessary: will including the AC power cord, DC cable will not included!

1. How to install?



Put female to the inverter first, make sure it is connected, then put male plug to the home power.



2. How to take away?



Take off the male plug from the home power first, then take away the female plug.

*NOTE*-THESE SHIP TO US FROM CHINA MFG. PLEASE ALLOW 3-5 WEEKS FOR DELIVERY

Email Friend

Product Question
List Price: $1,999.99
Your Price: $1,499.00
