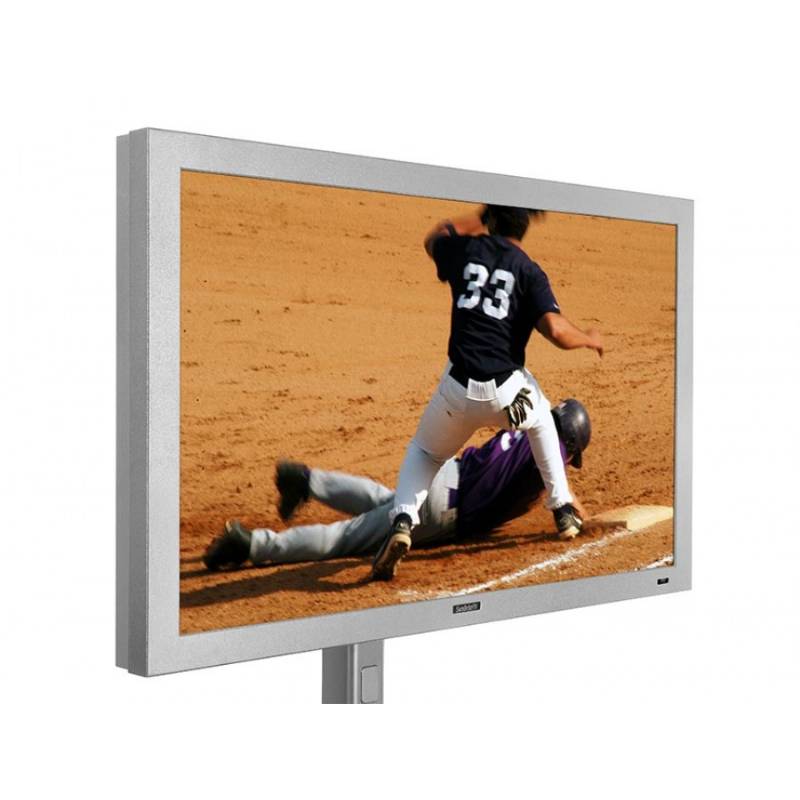

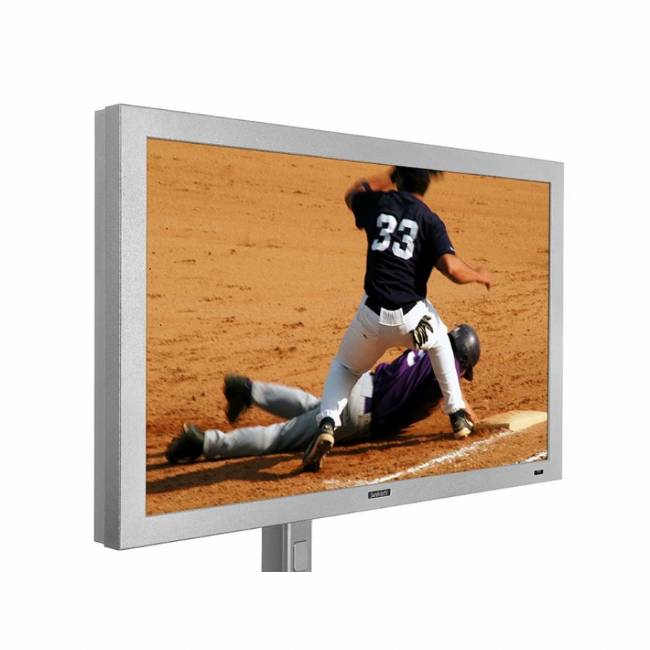

47" Pro Series Direct Sun Outdoor TV - SB-4717HD

Outstanding in black, white or silver, the 47" Pro Series outdoor LED HDTV is built for permanent outdoor placement.

Designed and engineered to withstand heat, cold, rain, snow and the occasional patio food-fight. Rugged enough to endure harsh environmental elements, yet savvy enough to compliment any outdoor living space.

The SB-4717HD is weather-tight - with interior components protected by the powder-coated aluminum exterior. Complete with anti-reflective protective glass and high-temperature Extended Solar Tolerance (EST) technology. EST protects the TV screen from isotropic blackout ... an occurrence when TVs face direct sunlight causing dark spots on the screen.

SB-4717HD

47” Pro Series True-Outdoor All-Weather Television for permanent outdoor installation
Ultra-Bright (700 NIT) 47-inch full HD, 1080p LED screen for improved outdoor viewing
Direct Sunlight-Readable
Anti-reflective protective glass
High temperature Enhanced Solar Tolerance (EST) technology prevents isotropic blackout
Multi-fan airflow system keeps the unit cool & dry in temperatures up to 122 degrees F
Ability to operate in cold weather (-40 degrees F)
Exterior designed to protect internal components from rain, snow, dust, insects, humidity, and salt air
Powder-coated rust-proof aluminum exterior for strength and durability
RS232 serial control with discrete on, off, and input control (located in the cable-entry compartment)
Rear IR receiver (located in the cable-entry compartment)
Innovative water-tight Cable Entry System seals out moisture and allows for easy hook-ups
Weatherproof detachable 20W speaker bar
Weatherproof remote control
Weatherproof control buttons
Remote control Lock-out prevents unauthorized users from changing the programming
Includes Weatherproof Detachable 20W Speaker Bar, Weatherproof Remote Control, Warranty, Manual

Key Features

LED Screen	47-inch diagonal Color Active Matrix LED
LED Screen	Anti-Reflective Protective Glass
Resolution	1920 x 1080 full-HD 1080p
Screen Brightness	700 nits (cd/m2)
Ambient Light Sensor - Auto Dimming	Yes
Aspect Ratio	16:9
Contrast Ratio	1300:1
Frame Rate:	120Hz
Viewing Angle	176 °x 176 °
Response Time	12 milliseconds
TV formats	1080p, 1080i, 720p, 480p, 480i
Screen Orientation	Landscape Mode
Input Connectors
RF	Antenna/CATV (ATSC/QAM/NTSC) x1
HDMI	HDMI™ Input x2
Video Composite	S-Video x1 and Composite Video x1, L/R Audio Inputs x1
Video Component	YPbPr plus Stereo Audio x2
PC	15-pin D-sub VGA plus Stereo Audio
Control Set	RS232 Serial, Discrete IR Control, Concealed IR Window
Audio Out	SPDIF Coaxial Digital x 1, Analog 1/8” headphone jack (variable), Amplified: 10-watt x 2 channels @ 8ohm
Speakers	20 WATT Weatherproof Detachable Speaker Module (included)
Input Power	100-240 VAC, 50-60 Hz 2.8 A Max
Operating Temp	-24° to 122° F. (-31° to 50°C.)
Non-op. Temp	-24° to 140° F. (-31° to 60°C.)
(O. -mode with power applied)	The non-operating temperature feature requires power to be applied.
Accessories Included	Weather-Proof Remote Control
Exterior	Powder-coated aluminum
Exterior Colors	Black, Silver, White
TV Dimensions	44.72”W x 27.16”H (29.33” with speaker bar) x 6.51”D
TV Weight	85.0 lbs
Shipping Dimensions	52.0"W x 42.0"H x 13.0"D
Shipping Weight	101.0 lbs
Residential Warranty	Two-year, parts and labor.
Commercial Warranty	Two-year, parts and labor.

Model 4717HD Specification Sheet - PDF

Model 4717HD Tech Specs & Diagrams - PDF

Model 4717HD Operator's Manual
