Electronics Gear- Electronics,Computer Sales and Service: Choice Select Ultra EQ-215 15 band Stereo Eq. XLR & 1/4in balanced in, Professional Audio, CHO3072

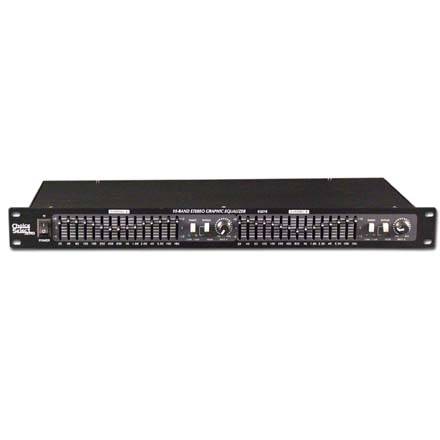

Model EQ-215 is a two channel 15 band 2/3 octave graphic equalizer. The EQ215 incorporates constant-Q circuitry with a 5% center frequency accuracy. Special features include selected range - 6dB or-12dB, balanced and unbalanced input/output connectors, RF1 filters, variable level control, passive bypass switch, PEAK LED and ground lift switch.

2x15 Band: 2/3-Octave ISO Spacing From 25Hz or 16KHz
Type: Constant Q (Accuracy 5% Center Frequency)
Range: ±6dB or ±12dB (Switch Selectable)

Connectors: XLR 3Pin, 1/4” TRS
Impedance: 20K Ohms Bals; 15K Ohms
Maximum Level: + 24dBu(Bal) + 18dBu(Unbal)

Connectors: XLR-3Pin,1/4” TRS
Impedance: Typ.<150 Ohms
Maximum Level: +24dB Bal; +18dB unbal (2k Ohms) / +18dB Bal; +12dB unbal (600 Ohms)

Overall Gain Range: Off to 3dB(Unbal Out)Sliders Centred / Off to 9dB(Bal Out)Sliders Centred
PEAK LED: Threshold 5dB(Below Clipping)
Frequency Response: 20~20KHz +0,-2dB
HPF Filter: 10~250Hz,12dB/Oct
LPF Filter: 3K~40KHz,12dB/Oct
THD+Noise: 0.05%(1KHz +3dB)
Signal-to-Noise Ratio: 96dB below Max. Level (A weighting)
Equivalent Input Noise: -81dB(0dB=0.775V)
Power Supply: USA: 115V/60Hz
Input AC power: 7W
Fuse: F0.5A/250V
Housing Construction: All Steel
Dimensions: 1.75in H x19in W x 8.5in D
Gross Weight: 7.9 lbs
