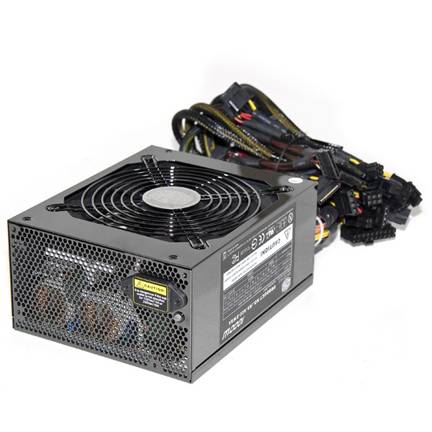

Cooler Master Real Power Pro 1000W ATX Power Supply,SLI ready,PFC
Cooler Master Real Power Pro 1000W ATX Power Supply,SLI ready,PFC

Cooler Master Real Power Pro 1000W ATX Power Supply, SLI ready, active PFC

In order to satisfy more customers' demand for high-end PSU, Cooler Master is announcing the new series of PSU-Real Power Pro to continue Real Power series' well reputation. It complies with the newest Intel standard ATX 12V V2.2 and SSI standard EPS 12V V2.91simultaneously. In addition to the stable and clean power, the advanced features of this Power Supply include Quad GPU compatibility , Quad CPU support, and an 85% efficiency rating. With the world's first technology of six + 12V rails, Real Power Pro proves to be a spectacular performer, especially for workstation and high-end graphic card system, which includes 4 connectors for the most powerful PCI Express VGA Card.

1.World’s first six +12V rails for better power distribution in Quad-SLI and 2 ways server system
2.Four 6 pin PCI-e connectors offer great future upgradeability
3.Two 8 pin PCI-e connectors are compatible with future graphic card upgradeability
4.Compliance with the newest Intel standard ATX 12V V 2.2
5.Compliance with the newest SSI standard EPS 12V V2.91
6.Ultra-silent operation with intelligent 135mm fan speed control (< 16dBA)
7.Eco-design for energy and money saving by Active PFC.(>0.99)/ high efficiency(>85%)
8.Higher reliability (MTBF > 100,000 hours)
9.Power Failure Detector will light up when Over-Voltage, Under-Voltage, Over-Temperature, Over-Current, Over-Loading, and Short circuit occur.

24 Pin Motherboard Connector x1
4 Pin + 12v CPU Connector x1
8 pin+ 12v Cpu Connector x1
6 Pin PCI-a connector x4
8 pin PCI-e Connector x2
S-ATA Connector x8
4 pin Peripheral Connector x6
4 Pin Floppy connector x2

Model RS-A00-EMBA
Type ATX Form Factor 12V V2.2 / SSI standard EPS 12V V2.91
Input Voltage 90~264V (Auto Range)
Input Current 15A@ 115 Vac / 8A@ 230 Vac
Input Frequency Range 47~63 Hz
PFC Active PFC(0.99)
Power Good Signal 100~500 ms
Hold Up Time >17 ms
Efficiency >85% Typically
MTBF >100,000 hrs
Protection OVP / OCP / OTP / OLP / Short / Full Protection
Output Capacity 1000 Watts Continuous
Max. Output Capacity 1,200 Watts
Dimension (inches) 150(W) x 180(L) x 86(H) (mm)
Operation Temperature 0~50?(Nominal Input Voltage)
Safety CE / cUL / TUV / NEMKO / BSMI / FCC
UPC Code 870423004691
Warranty 5 years
Email Friend

Product Question
List Price: $399.99
Your Price: $319.00
