Aton Model HDR44KT Router Kit w/Router, 4 W.P., 4 Rec., 4 Em., 1 Rm.
Aton Model HDR44KT Router Kit w/Router, 4 W.P., 4 Rec., 4 Em., 1 Rm.

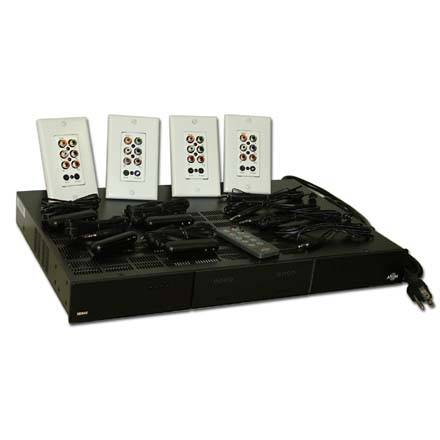

Model HDR44KT includes 1 HDR44 Video Router, 4 Wallplates, 4 Receivers, 4 IR Emitters, and 1 Slimline IR Remote. The HDR44 HD Video Router allows the user to share HD video sources with other areas throughout the house without needing to purchase multiple video sources for every room. Routes 4 HD video sources to 4 zones, in tandem with digital and analog audio up to 500 feet away. Supports resolutions of 1080p, 1080i, 720p, 480p and 480i. An R44WP Receive Wall Plate in each zone utilizes (2) Cat5 cables from the HDR44 to output all video and audio. System is expandable to 8 zones with an additional HDR44 chassis.
    Kit Includes:
  • (1) HDR44 Router
  • (4) R44P Wallplates
  • (4) AIR1 Receivers
  • (4)IR Emitters
  • (1) Slimline IR Remote
  • Gross Weight: 12.9 lbs
    HDR44Router Specifications:
  • (4) Component video inputs and (4) buffered outputs: Gold plated RCA Connectors
  • (4) SPDIF Digital audio inputs and (4) buffered outputswith Gold plated RCA Connectors
  • (4) Analog audio inputs with Gold plated RCA Connectors
  • (4) R44WP wall plate outputs (2 RJ-45 per zone output)
  • External IR input (tip – IR, ring – 12V, sleeve – ground)
  • (4) source IR outputs and (1) "ALL" IR output
  • Control loop output (RJ-45) for system expansion
  • (4) front panel source LEDs per zone
  • System cable: Cat5 (2 per zone)
  • Maximum cable length: 500 ft.
  • System bandwidth: 185MHz, -3dB (90 MHz, -0.5dB)
  • Supported resolutions: 1080p, 1080i, 720p, 480p and 480i
  • Chassis dimensions Without feet: 1.75in x 17in x 11in
  • Chassis dimensions With feet: 2.375in x 17in x 11in
  • Cassis Weight: 9.6lbs
  • Wiring Requirements: (2) Cat5 to each R44WP Wall Plate

Email Friend

Product Question
List Price: $1,999.99
Your Price: $1,199.00
Out of Stock
Notify Me when it arrives?
