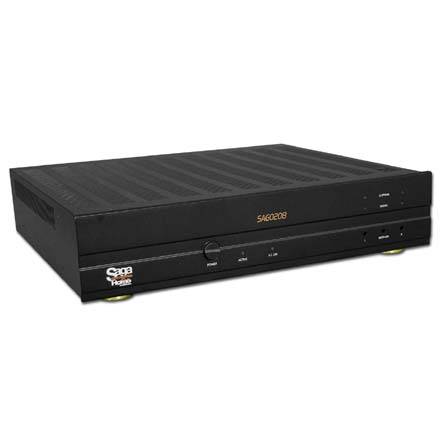

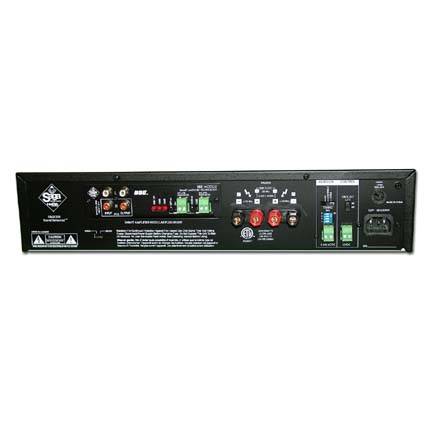

Saga Home Edition Stereo Power Amplifier
Saga Home Edition Stereo Power Amplifier

Saga Home Edition 2 channel x 75 Watt amplifier with BBE Sound Enhancement Don’t be fooled by the rated power on this amp…its BBE Sound Enhancement Module makes it significantly better than most 100 Watt amps on the market! The Saga SAG0208 is ideal for powering 2 zones in a multi-room audio system or it can be bridged to a solid 250 Watts of continuous power when using with a passive subwoofer. With features like our auto turn-on (with delay), a bridging switch, and a ground lift switch this Saga Home Edition amp is sure to be an audio architect’s favorite.

To BBE, or not to BBE? Ask our competitors if their amps come with a pre-installed BBE module and watch them squirm. Unlike most, our Saga Home Edition Amps come with Sound Enhancing Modules. BBE Technology is used to recover the clarity of sound by compensating for the natural deficiencies that occur in speakers. The BBE process makes it clean and crisp! For more information about BBE Technology click here: What is BBE?

Safe & Sound (pun intended) This Saga Amp has an active current limit which regulates how much voltage it will absorb, keeping it safe from the risk of an extreme surge. Its short-circuiting and speaker protection ensures that your speakers won’t be in harms way either. Plus, its auto-resetting thermal protection will shut off the unit in case the unit is improperly ventilated and starts to over heat. Simply put, this amp was built to keep rock’n through the worst of circumstances.

Flexibility Our 75 Watts x 2 Channels in 6 ohms setting or our 125 Watts x 2 Channels in 4 ohms setting gives you flexibility. These options provide plenty of power to run 6 or more volume controls in a multi-room audio application. Running at 4 ohms is no hill for this climber!

Power!!! If you’re looking for some real beef, just give the bridging switch a flip for a full 250 Watts of continuous power when using it with a passive subwoofer. For those of you who like to not only hear the sound but to feel it as well…just use two of the SAG0208’s for 250W x 2 channels for continuous power.

Turn-on modes Any true A/V Professional knows different jobs call for different configurations. The great part about this amp is that it allows you to decide whether you want it to kick on when the audio signal is sensed or you want to integrate a low-voltage trigger system…it’s your call! To prove we’re not cutting any corners, our Amps include a trigger output. Thus, there's no need to splice wires during installation.

Damage Control Saga has eliminated the opportunity for disaster to strike by adding tamper proof volume controls. This feature requires a fine tip screwdriver to make adjustments and should be set and/or adjusted by an A/V Professional. By making the volume controls less accessible, we help prevent damage to your amp as well as any connected equipment. So, avoid timely and expensive service calls by installing this amp which won’t fall victim to medaling fingers.

Rack Ears Included Just in case you decide you want to install this amp directly into one of our Royal Racks or any 19” Rack for that matter, we supply Universal Rack Ears.

    Other features include:
  • Recessed power switch that prevents accidental turn-off
  • Tamper-resistant recessed input level and auto-on sensitivity controls
  • Auto-on dip switch for turn-on delay (2, 4, 6, 8, or 12 seconds)
  • Defeatable high-pass filter to protect in-wall volume controls
  • Bridge/mono switch
  • High-current amplifier technology that can operate at 2.66 ohms
  • Defeatible auto-on signal sensing
  • Active current limit short-circuit and speaker protection
  • Signal preset LEDs
  • Protect-Clipping LEDs for easy level setup
  • Auto-resetting thermal protection shutoff
  • Inrush current-limiting circuit

  • Rated power (20Hz-20kHz) RMS: 75 watts per channel @ 8 ohms / 125 watts per channel @ 4 ohms / 135 watts per channel @ 2.7 ohms
  • Bridged power (20Hz-20kHz) RMS: 250 watts per channel @ 8 ohms
  • Midband power (1kHz, at Clipping) RMS: 114 watts per channel @ 8 ohms / 140 watts per channel @ 4 ohms / 168 watts per channel @ 2.7 ohms
  • Bridge Midband Power (1kHz) RMS: 270 watts per channel @ 8 ohms
  • IHF Dynamic Power: 120 watts per channel @ 8 ohms
  • (20ms 1kHz Tone Burst): 194 watts per channel @ 4 ohms
  • per IHF RS-490/3.2: 239 watts per channel @ 2.7 ohms
  • Total Dynamic Headroom: +1.75dB @ 8 ohms / +1.9dB @ 4 ohms / +2.5dB @ 2.7 ohms
  • Total Harmonic Distortion (2-ch mode): 0.05% 20Hz 20kHz @ 8 ohms / 0.08% 20Hz 20kHz @ 4 ohms / 0.15% 20Hz 20kHz @ 2.7 ohms
  • Total Harmonic Distortion (Bridged mode): 0.05% 20Hz 20kHz @ 8 ohms
  • I.M. Distortion (SMPTE 4:1) @ 8 ohms: 0.008% @ 1 watt / 0.015% @ 75 watts
  • Signal to Noise Ratio: 105dB below rated output (A-weighted)
  • Input Sensitivity: 0.7 volts for rated output (75 watts @ 8 ohms)
  • Input Impedance: 47k ohms, min.
  • Power Requirement: 120 VAC, 50/60Hz
  • Power Consumption: 500 watts (625 VA)
  • Dimensions: 16in x 3-7/8in x 15in
  • Dimensions (rack-mounted): 19in x 3in x 15in

Email Friend

Product Question
List Price: $599.99
Your Price: $399.00
