Electronics Gear- Electronics,Computer Sales and Service: Xantech CB12 One Zone One Source Connecting Block, Consumer Video, XAN1205

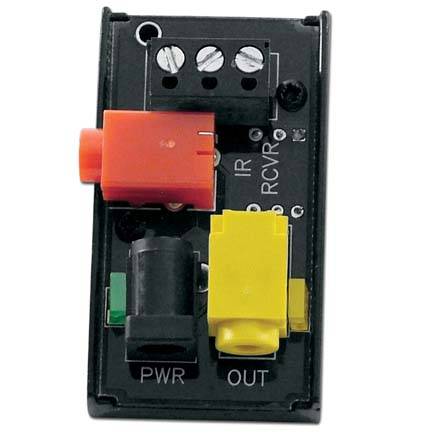

Model CB12 Connecting Block is the central control for an IR system. The precision steel-encased block has two jobs: Routing IR commands from the receiver to the rest of the A/V system through the emitters, and distributing the power required to "drive" the receiver/emitter system. Removable terminal block makes custom installation easier and allows connecting multiple IR receivers for multi-zone systems.

Connects one emitter port and power supply to Xantech IR Receivers that use a stereo mini plug
Includes a three-terminal block for wired connection of Xantech IR Receivers and Smart Pads
3.5 mm stereo mini jack for quick-connect IR receivers
3.5 mm mono mini jack for one single or one dual emitter
2.1 mm coaxial power jack
Requires either the 781ERGPS or 782ERGPS Power Supply
Dimensions: 21/8" x 1 1/4" x 3/4" (54mm x 32mm x 19mm)
