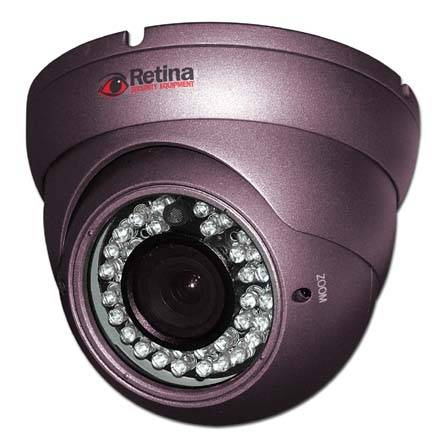

Retina Vandal Proof IR Dome Camera 540TVL Sony
Retina Vandal Proof IR Dome Camera 540TVL Sony
The RET1020 Vandal Proof IR Dome Camera features SONY high resolution CCD sensor technology and a water-resistant housing. This day/night camera comes with an adjustable lens from 4-9mm and can reach a sight distance up to 30m with its 36 unit infrared LED design. With a horizontal resolution of 540 TV Lines, this security camera is an above average solution built to maintain picture clarity by providing rich color and high definition. The RET1020 also features an auto gain control and an auto electronic shutter.


Let us be your eye in the sky!


  • Pick Up Element: Sony 1/3" CCD
  • Effective Picture Elements (H*V): NTSC(768x494) PAL(752x582)
  • Horizontal Resolution: 540 TVL
  • S/N Ratio: >54dB
  • Clock Frequency (MHz): NTSC(19.0699) PAL(18.9375)
  • Scanning System: 2:1 Interface
  • Minimum Illumination: 0 Lux (with IR LED ON)
  • Synchronous System: Internal, Negative Sync
  • Auto Electronic Shutter: NTSC(1/60-1/100,000) PAL(1/50-1/100,000)
  • Gama Characteristic: 0.45
  • IR Distance: 30m / 98.43ft (with 36 unit IR LED)
  • IR Status: <10 Lux by CDS
  • IR Power On: CDS Auto Control
  • Video Output: 1 Vpp, 75ohm
  • Auto Gain Control: Auto
  • Power/Current: 12V DC (±10%) / 400mA
  • Lens: 4-9mm
  • Water Resistance: IP65
  • Dimensions: 131mm Diameter x 93mm Height (5.16" x 3.66")
  • Weight: 1.76 lbs
  • Storage Temperature: -30º to +60º C RH 95% Max
  • Operating Temperature: -10º to +50º C RH 95% Max
  • Power supply not included*
Email Friend

Product Question
List Price: $149.99
Your Price: $99.00
